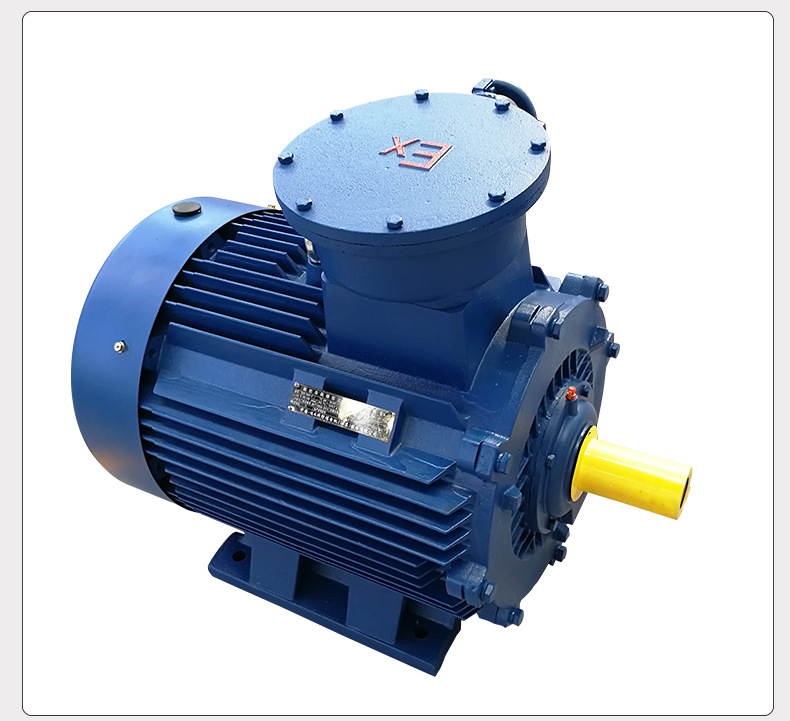

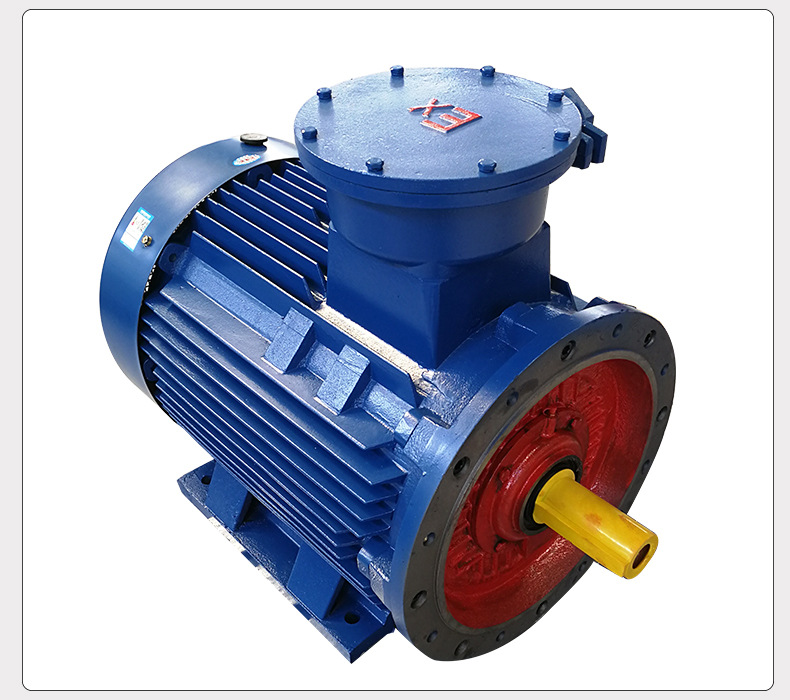

Explosion-Proof Motor BT4 3KW Vertical and Horizontal Processing Copper Wire Three-Phase Asynchronous Motor
Model : YBX3-100L2-4
Series : YBX3 explosion-proof motor
Part Number : YBX3
Product Type : Three-phase asynchronous motor
Number of poles : 4-pole
Rated Power : 3 KW
Rated voltage : 380 (V)
Rated speed : 1420（rpm）
Application : Mechanical equipment
3C rated voltage range : AC 36V and above, below 1000V
Specification : B5,B3,B14,B35
Product Certification : CCC
Brand : JIAMUSI
Product Overview :
YBX3 series high efficiency flameproof three-phase asynchronous motor ( H 80 ~ H 355 )
Power range: 0.18kW～315kW
Number of poles: 2p～16p
Explosion-proof grade: ExdI Mb, ExdIIAT4 Gb, ExdIIBT4 Gb, ExdIICT4 Gb
Rated voltage: 380V, 660V, 1140V, etc.
Technical features:
high efficiency, low noise, stable performance, etc. The efficiency meets the Level 2 energy efficiency in GB18613-2012 and IE3 in IEC60031-30-1.
Application areas:
Driving fans, compressors, water pumps and other loads, widely used in petroleum, chemical,
Steel, coal and other industries.
