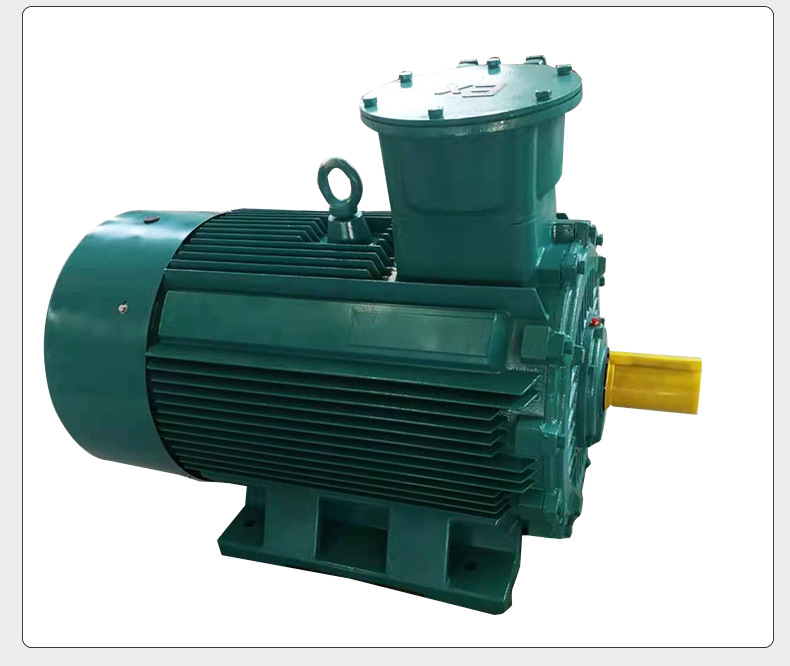

Composite Explosion-Proof Motor YBFBX5 Gas Dust Explosion-Proof 380V Copper Wire Three-Phase Asynchronous Motor
Model : YBFBX5-80M2-4
Rated power : 0.75KW
Rated voltage : 380V
No-load speed : 1390 RPM
Number of poles : 4 poles
Rated torque : 5.15
Power Factor : 0.75
Efficiency : 82.5
Rated current : 1.84
Dimensions : 330*320
Product Overview :
Y BFBX series high efficiency composite explosion-proof three-phase asynchronous motor ( H 80 ~ H 355 )
Power range: 0.18kW～315kW
Number of poles: 2p～8p
Explosion-proof grade: ExdIICT4/ExtDA21IP66T135℃
Rated voltage: 380V, 660V
Technical features:
high efficiency, high protection, etc. The efficiency meets the requirements of GB18613-2012 .
1 energy efficiency, and meets IE4 in IEC60031-30-1, and the protection level can be
To achieve IP66.
Application areas:
Driving fans, compressors, water pumps, winches and other loads, widely used in petroleum,Chemical, steel, coal and other industries, suitable for explosive gas and explosive Places where dust exists.
