Communication Management Machine

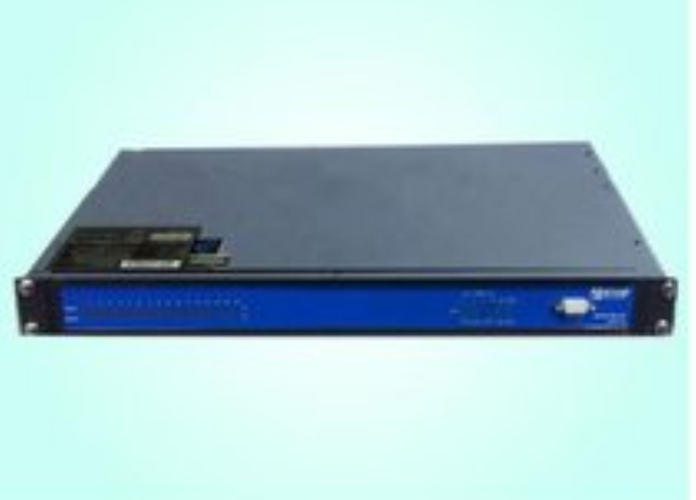

Xuji original factory supply communication management machine SE5216
The serial device server provides Ethernet and standard serial interface RS-232/422/485
It acts as a bridge of communication between Ethernet ( Ethernet , TCP/IP ) and RS-232/422/485 ports.
The serial port server plays the role of simply transmitting data, but does not participate in the processing of the transmitted data.
(transparent). In the automation industry or system integration manufacturing industry, the serial port server can be directly used
Connect to the Internet for field equipment.
( The main control program in the serial server ) can receive the RS-232/422/485 connection port
Any information is converted into TCP/UDP format, and then processed by one or more applications to start a host computer
This function allows you to control the RS-232/422/485 connected device via Ethernet .
RS-232/422/485 interface devices are more convenient.
Although many control devices provide RS-232/422/485 interface processing, RS-232/422/485 interface has its inherent
One of the limitations is that it cannot transmit over long distances.
Remote control will become possible on the Intranet or even the Internet .
The server effectively overcomes the communication distance.
The serial device server provides 16 RS-232/422/485 connection ports, Ethernet 2
Network connection port (10/100 Mbps) , real-time clock, watchdog and other functions.
Product Packaging :
AC power cord x 1
RJ-45 to DB9 Male Cable x 1
L -type rack mounting ears × 2 (including screws × 6 )
- Brand: Xuji Electric
- Model: SE5216
- Type: SE5216
- Custom processing: No
- Rated voltage: 220V
- Input voltage: 220V
- Frequency: 50HZ
