Xuji | DTS566 Three-Phase Four-Wire Active Energy Meter

Deskripsi

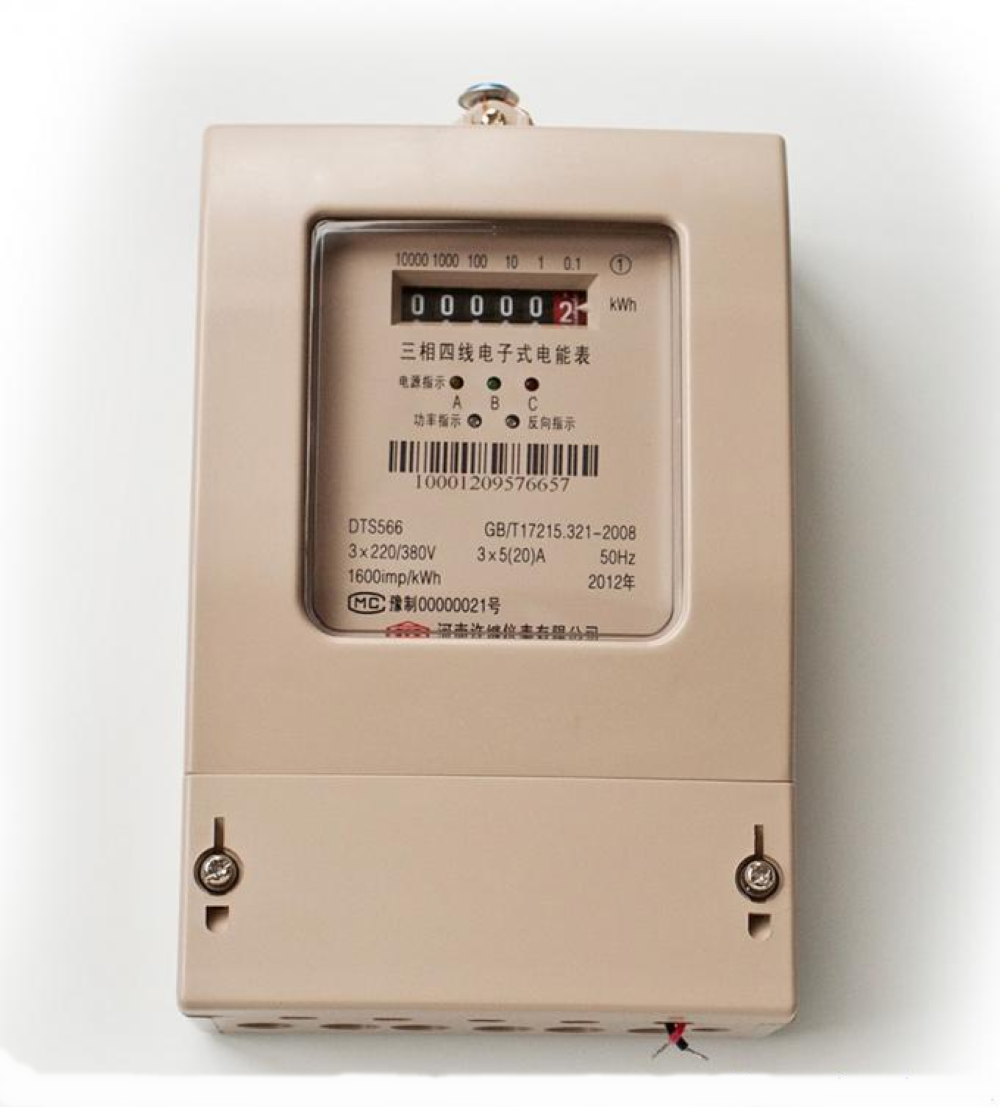

Three-Phase Four-Wire Active Energy Meter

• Brand: XUJI ELECTRIC
• Model: DTS566
• Type: Electronic Electric Energy Meter
• Power supply: AC meter
• Electrical equipment: three-phase four-wire
• Use: Civilian
• Custom processing: No
• Maximum current: 3*200AA
• Accuracy Grade: 1.0
• Basic current: 1.5 (6) A
• Reference voltage: 220V
• Current multiplier: 1
• Display mode: LCD
• Frequency: 50HZHz
• Dimensions: 230*145*70mm
• Weight: 2kg

DSS566/DTS566 Three-Phase Electronic Active Energy Meter

(1) Product Overview:

This product is manufactured using advanced ultra-low power solid-state integration technology and SMT technology. It has the advantages of high reliability, wide load range, high accuracy, and low power consumption. It is used to measure three-phase AC active electric energy with a rated frequency of 50Hz and is a replacement for traditional induction electric energy meters.

This product fully complies with all technical requirements of [GB/T17215-2002] (idtlEC1036:1996). The communication protocol complies with DL/T645-1997 “Multi-function Electric Energy Meter Communication Protocol”.

(2) Technical parameters:

■ Rated frequency: 50Hz

■ Working temperature -30～+55℃

■ Dimensions: DTS566 : Length × width × thickness = 256mm × 170m × 75mm

DSS566 : Length × width × thickness = 230mm × 145m × 70mm

(3) Functional features:

■ Active energy metering works for a long time without adjustment

■ The product adopts a single-chip ASIC, and the peripheral components are simple, which can ensure the long-term stable operation of the whole machine

■ Equipped with optical coupling pulse interface to facilitate error testing

■ High online precision, little influence by frequency, temperature and voltage high harmonics

■ Three-phase power supply, it can work normally even if one or two phases are cut off, and it has phase-off indication function

■ Low power consumption, less than 2W/6VA

■ With RS485 communication interface (optional)

■ Strong anti-transportation capability. The meter will not cause error changes under various normal transportation conditions. Users can use it without adjustment after unpacking, and it is not affected by the installation location.
