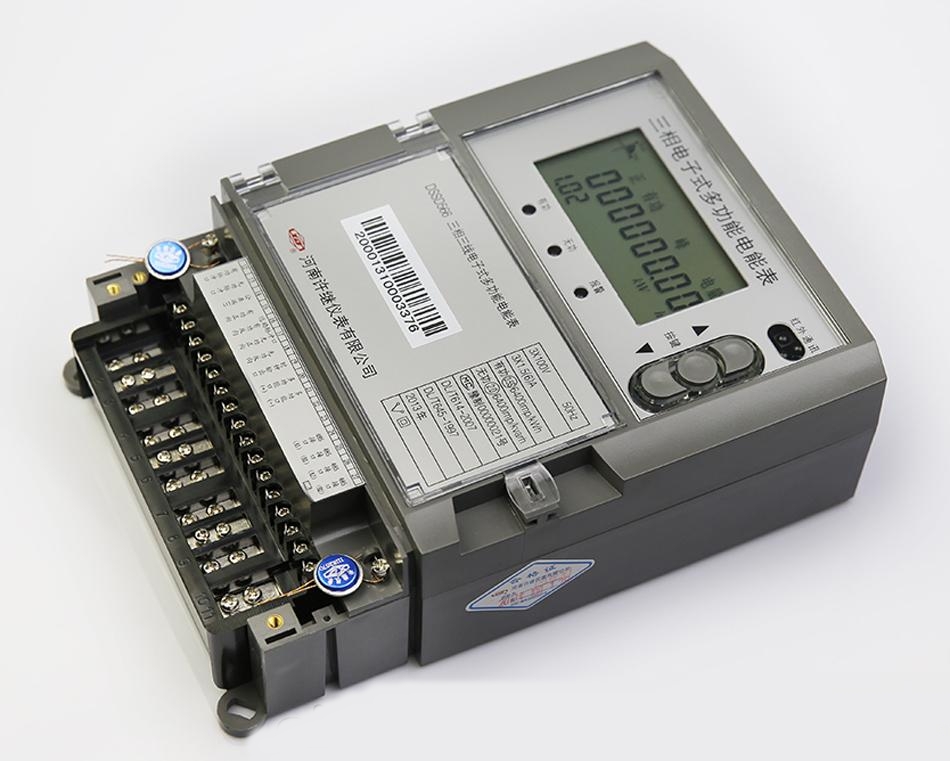

Three-Phase Three-Wire Electronic Multi-Function Meter
Product Description:
● Active power metering, reverse power can be set to be included in the forward or reverse metering.
● Reactive power metering, four-quadrant reactive power, metering mode can be set.
● Demand metering, demand cycle 15, 30, 60 minutes can be set, slip time 1, 3, 5 minutes can be set.
● Four tariffs, ten time periods, four time zones, holidays, weekends can be set.
● Hardware clock
● Voltage loss detection and recording, current loss detection and recording, recording times 10 times, voltage loss and current loss threshold can be set.
● Reverse phase sequence detection and indication.
● Voltage, current, frequency measurement and display.
● Real-time power, power factor.
● 12 months of historical power.
● With record freezing data function and time zone switching freezing function.
● Setting parameters, power on and off and other event records.
● Data wheel display, key display items and sequence, display time, etc. can be preset.
● Far infrared communication interface (can use handheld computer for data communication), infrared, 485 physical independence, 485 interface protection.
The following functions are optional:
○DL/T645-1997 protocol, Wasion protocol self-adaptation
○Phase-splitting electricity metering
○LCD backlight function
○Opening record
○Load curve record
○Power outage display, power outage infrared meter reading, power outage infrared wake-up function
○Full voltage loss detection and recording function
○Programming safety authentication function
○Dual RS485 interface
- Brand: Xuji Electric
- Model: DSSD566
- Type: Electronic electric energy meter
- Power supply: AC meter
- Electrical equipment: three-phase three-wire
- Wiring method: Direct access
- Principle: Electronic
- Use: Civilian
- Custom processing: No
- Maximum current: 80AA
- Accuracy level: 1.0
- Basic current: 1.5 (6) A
- Reference voltage: 100V
- Current multiplier: 1
- Display mode: LCD
- Frequency: 50HZHz
- Packing quantity: 6
- Dimensions: 275*172*73mm
- Weight: 2kg
- Working humidity: ＜95％
- Working temperature: -25℃~60℃
- Extreme temperature: -30℃~60℃
- Power failure data storage: 10 years
