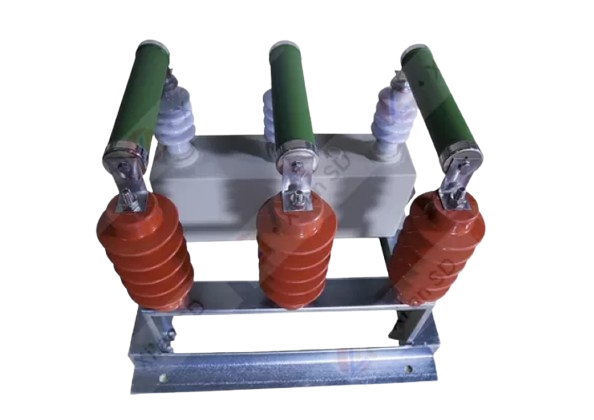

6kV Damping Capacitance Resistance Overvoltage Protection
Model : SDB1-6Z
MFR : SHENDIAN ELECTRIC
Product introduction:
Resisor-Capacitor overvoltage protecion device is a new product developed by Shendian, which combines the advance of surge arrester and resistor-capacitor absorber. It is capable of reducing the steepness and amplitude of the operating overvoltage.
Characteristic:
1/ High voltage withstand;
2/ Small loss dissipation;
3/ MIniaturization.
Specifications :
| Model: | SDB1-6Z | Usage: | Indoor / Outdoor |
|---|---|---|---|
| Type: | 3P Resistor-Capacitor Overvoltage Protection Device For Substation | Nominal System Voltage: | 6kV/ Customer Specified |
| Nominal Discharge Resistance: | 100Ω | Nominal Discharge Capacitance: | 0.1μF |
| Highlight: | 6kV Damping Resistor, 0.1uF 6kV Damping Resistor,
3P 100 ohm 6kV Damping Resistor |
||
Standard Technical Data:
Below info. only for your reference, all data shall be specified and determined by technical specification and customer demand.
| Item | Description | Offered | |
| 1 | Manufacture/ Country of Origin | Xi’an Shendian/ China | |
| 2 | Model | SDB1-6Z | |
| 3 | Applicable standard | IEC 60099-4 | |
| 5 | Norminal voltage of system | kV | 6 |
| 7 | Rated resistance | Ω | 100 |
| 8 | Rated capacitance | μF | 0.1 |
| 9 | SA Model | YH5WZ-10/27 | |
| 10 | Rectangular current impulse withstand at 2ms of MOA | A. peak | 400 |

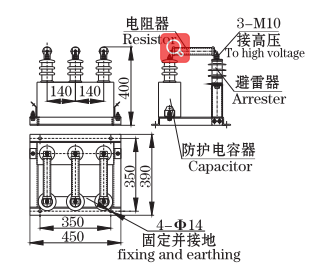

Schematic diagram:
