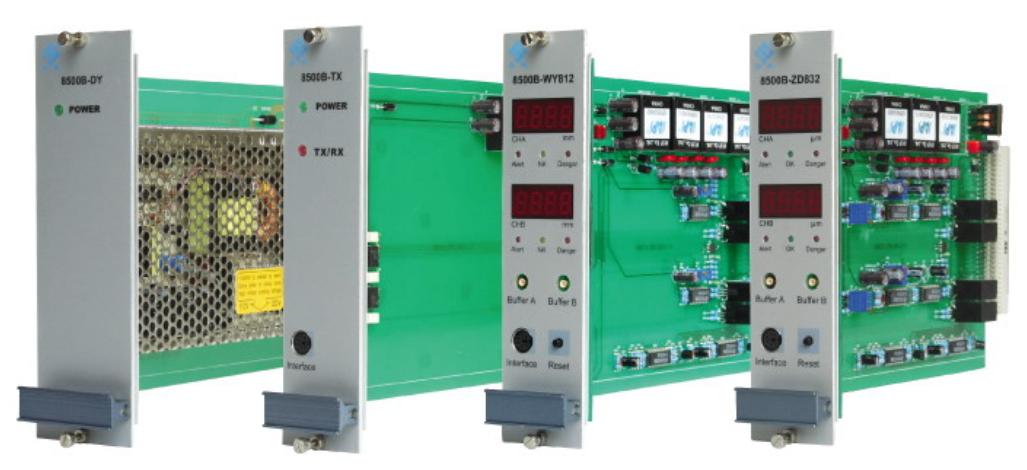

Wuxi Houde | 8500B-ZD852 Vibration Displacement Plug-In Module

8500B-ZD852 vibration displacement plug-in module is mainly used in the fields of electricity, building materials, chemical industry, etc. for the bearing vibration and shaft vibration of various rotating machinery. Monitoring and measurement are convenient for users to analyze and maintain the machine. When the machine vibration exceeds the normal value, the device will immediately issue an alarm or send a warning signal prompt, so that your machine can be protected immediately. To avoid unnecessary economic losses, the vibration protection device retains the decimal point reading and continuously displays 4 digits to achieve the function of one meter for multiple uses. The meter adds high and low filters and isolation barriers, which greatly improves the anti-interference ability. The protection device has high precision, good stability, and a higher accuracy level than current similar products.

Technical parameters of 8500B-ZD852 vibration displacement plug-in module :

Input signal: HD-ST series vibration velocity sensor signal

Sensitivity: 20 mV/mm/s

Range    : Amplitude: 0 ~ 500.00um; Intensity: 0 ~ 50.0mm/s
Frequency response: 10 ~ 300Hz

Display mode: four-digit 0.36LED display
Output current: 4 ~ 20mA

8500B-ZD852 vibration displacement plug-in module ordering code:

HZD-8500B-ZD84/85-A□ -B □ -C □ -D □

Selection Instructions:

Range selection: A □:

1: 0～100 μm ;     4 : 0～10.0mm/s

2*: 0～200 μm ;     5 *: 0～20.0mm/s

3: 0～500 μm ;     6 : 0～50.0mm/s

Channel selection: B □:

1: Single channel

2*: Dual channel

Sensor selection: C □:

1: HD-ST-2

2*: HD-ST-3

Alarm delay: D □:

1: 0.1 seconds

2*: 1 second

3: 3 seconds

Example of selection of 8500B-ZD852 vibration displacement plug-in module :

Vibration: 8500B-ZD841-A2-B1-C1-D2, 8500B-ZD842-A5-B2-C2-D2

Intensity: 8500B-ZD851 -A2-B1-C1-D2, 8500B-ZD852-A5-B2-C2-D2
