High Voltage Asynchronous Motor

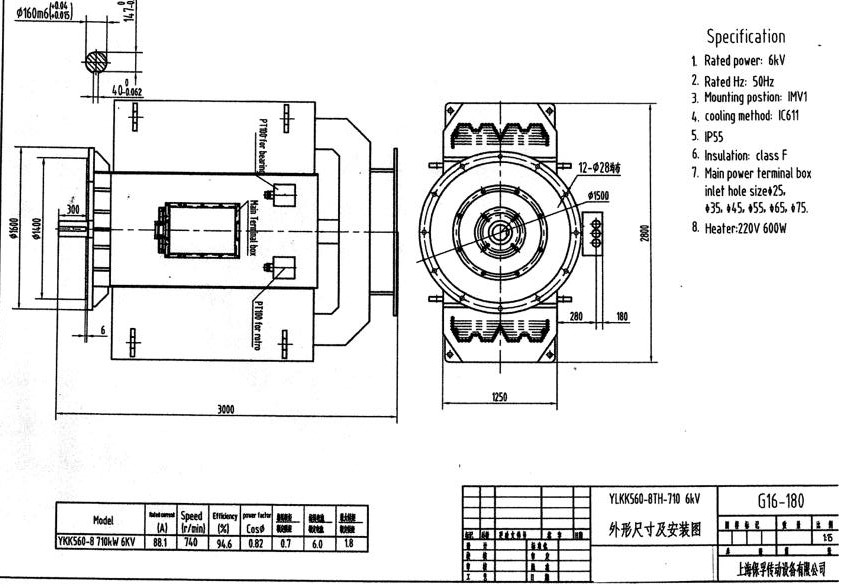

Model : G16-180 / YLKK560-8TH-710
Series : YLKK series
MFR : ANHUI WANNAN ELECTRIC
The frame is made of steel plate being welded up into form of square tank shape with light weight and firm rigidity.
Stator is an outer-press-assembly structure.
The stator is made of F grade insulation and corona proof material, a special banding technique is used for winding end part fastening.
The whole stator has been treated with VPI technology to make stator with a robust body and good electric and moisture proof.
The rotor can be developed into casting aluminum rotor or copper bar rotor.
The copper cage rotor guide bar and end ring are welded by intermediate frequency, and the copper guide bar diameter groove is treated with solid technology to make it have high reliability.
It can withstand a lot of axial force.
Ideal for driving all kinds of water pump. The protection grade is higher than YL series motor.
Components & Spare Parts List :
| Component | Material / Function |
|---|---|
| Stator Core | Laminated silicon steel, VPI-treated |
| Rotor (Squirrel Cage) | Cast aluminum or copper bar |
| Bearings | Rolling or sleeve type (IP54 protected) |
| Terminal Box | Cast iron, DIN standard, IP54 |
| Cooling Fan & Cover | Steel or aluminum, IC611 cooling system |
| Shaft | Alloy steel, single extension with keyway |
| Enclosure Frame | Welded steel plate, tank-shaped rigid body |
| Mounting Base | Horizontal foot-mounted (IMB3) |
| Insulation System | Class F or H, moisture-resistant |
Specifications :
| Parameter | Value |
|---|---|
| Model | G16-180 / YLKK560-8TH-710 |
| Rated Power | ~560 kW (typical for frame 560) |
| Voltage | 6 kV |
| Frequency | 50 Hz |
| Speed | ~740–750 rpm (8-pole) |
| Frame Size | 560 mm |
| Mounting Type | IMB3 (horizontal foot) |
| Cooling Method | IC611 (air-to-air heat exchanger) |
| Protection Class | IP54 / IP55 |
| Insulation Class | F |
| Duty Cycle | S1 (continuous) |
| Estimated Weight | ~3,800–4,500 kg |
