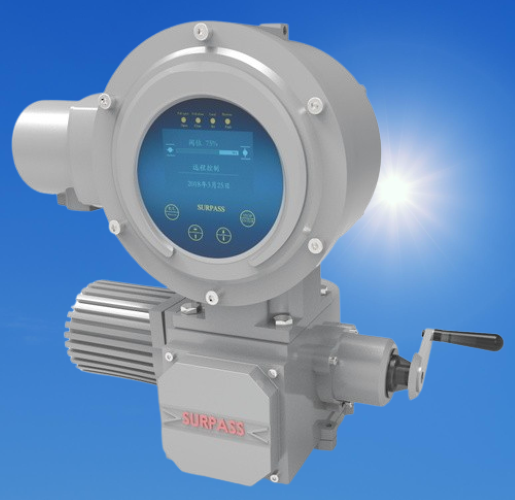

SURPASS | 2SA8010 Intelligent Variable Frequency Electric Actuator

Deskripsi

Intelligent Variable Frequency Electric Actuator

The SURPASS 2SA8010 Intelligent Variable Frequency Electric Actuator is part of the 2SA8 series, designed for rotary valve automation in power plants, petrochemical, water treatment, and heavy industrial systems. It uses Siemens-based vector inverter technology with adaptive control, offering high precision, energy efficiency, and long service life.

The 2SA8 series of intelligent variable frequency electric actuators is a new generation of intelligent variable frequency electric actuators developed by SURPASS. This product adopts vector frequency conversion control, fuzzy control, adaptive control and other technologies, which can change the direction of the motor, and can also accurately control the motor. It can completely replace imported executive agencies. The 2SA8 series is a large-screen touch button design, which can remotely debug, operate, monitor, diagnose and download information on the actuator through the mobile phone APP. It has the characteristics of variable frequency speed regulation, high efficiency and energy saving, slow opening and closing, precise positioning, lack of phase protection, self-diagnosis, bus technology, remote control (mobile APP remote control), touch buttons, etc.

Features:
●Absolute encoder: High-precision encoder provides more accurate data, which can be accurately checked
Measure the valve position.
●IP68 protection level: double-sealed structure, non-invasive design, avoid dust or liquid
Body entry
●LCD touch screen: large screen, full touch screen buttons, more beautiful
●Quality parts: high-precision mechanical parts, high-quality circuit boards
●Mobile APP control: The mobile phone can query and set parameters in real time, which is convenient for maintenance

Applications:
• Power Generation Plants (steam, hydro, thermal)
• Petrochemical & Steel Industries
• Water Treatment Systems
• Hazardous Area Instrumentation (explosion-proof variants)

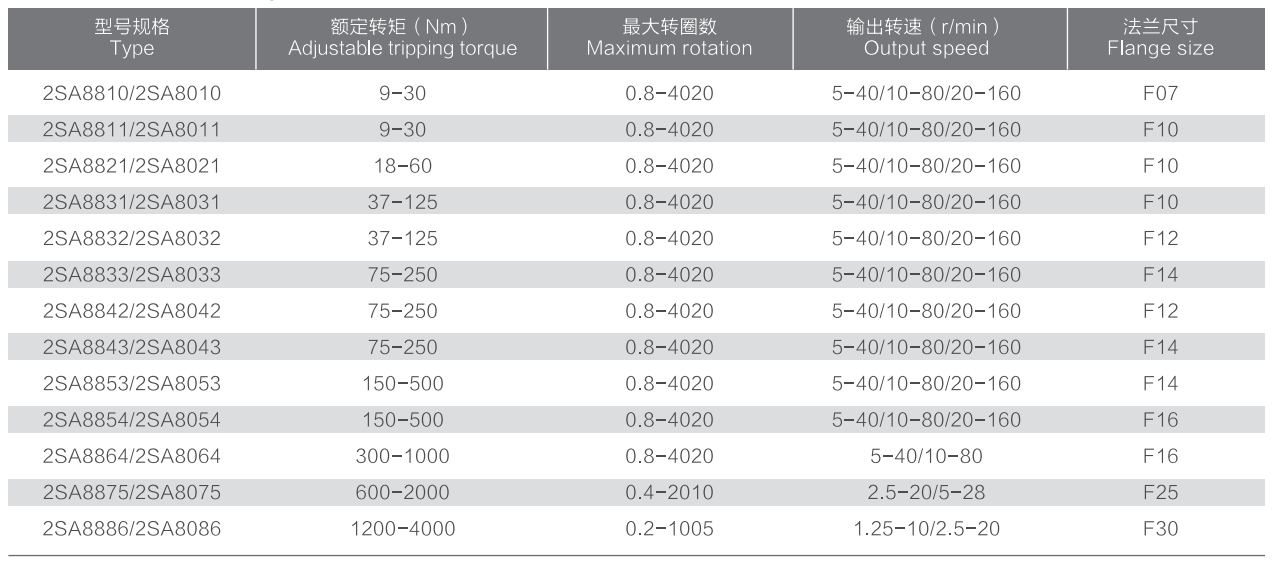

• Type: Rotary Electric Actuator (multi-turn type)
• Model: 2SA8010
• Series : 2SA8
• Function: Provides precise torque and speed control for industrial valves, integrating Siemens vector inverter and fuzzy logic technology.
• Torque Range : 9–30 Nm adjustable
• Rotation : 0.8–4020°
• Output Speed : 5–160 rpm (configurable)
• Flange Size : F07
• Input Voltage : AC 220V ±10%
• Control : Siemens vector inverter, adaptive control, self-diagnosis
• Communication : RS485 / Modbus (optional)
• Protection : Overload, short-circuit, explosion-proof variants
• Brand : SURPASS
• MFR : Surpass Automation Technology
