Deskripsi

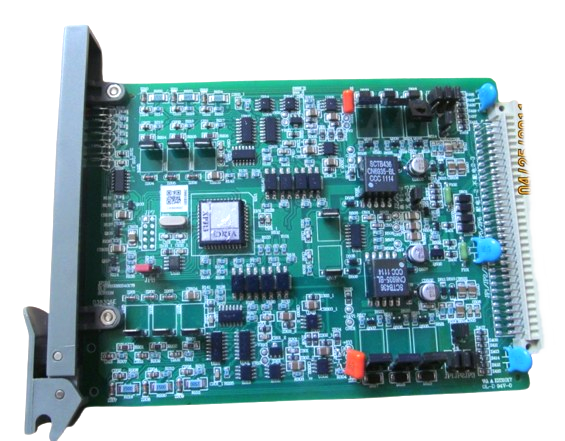

Digital Input Card
- Type: Digital input card
- Model: SP362
- Part Number: SP362
- System Compatibility: SUPCON JX-300XP DCS
- Brand : Zhejiang University Central Control
Product Overview:
The SP362 is a digital input card used in SUPCON’s JX-300XP DCS platform. It is designed to collect discrete signals from field devices such as switches, relays, and contact sensors. The card offers high-speed acquisition, optical isolation, and reliable performance for industrial automation and process control.
Specifications (typical for SP362 cards):
| Feature | Specification |
|---|---|
| Input Channels | 16 digital inputs |
| Input Voltage | 24 VDC nominal |
| Input Type | Dry contact or active signal |
| Isolation | Optical isolation between field and system |
| Response Time | <10 ms |
| Status Indicators | LED per channel |
| Connector Type | Ribbon cable header + terminal board |
| Mounting | Card slot in JX-300XP rack |
| Power Supply | 24 VDC ±10% |
| Operating Temp | −10 °C to +60 °C |
| Humidity | ≤95% RH (non-condensing) |
| Compliance | IEC 61131, GB/T 20438 |
Dimensions & Weight:
- Size: Approx. 160 × 100 × 25 mm
- Weight: ~500–700 g
Applications:
- SUPCON JX-300XP DCS systems
- Power plant control cabinets
- Chemical and petrochemical automation
- Water treatment and environmental monitoring
- Cement and metallurgy process control
