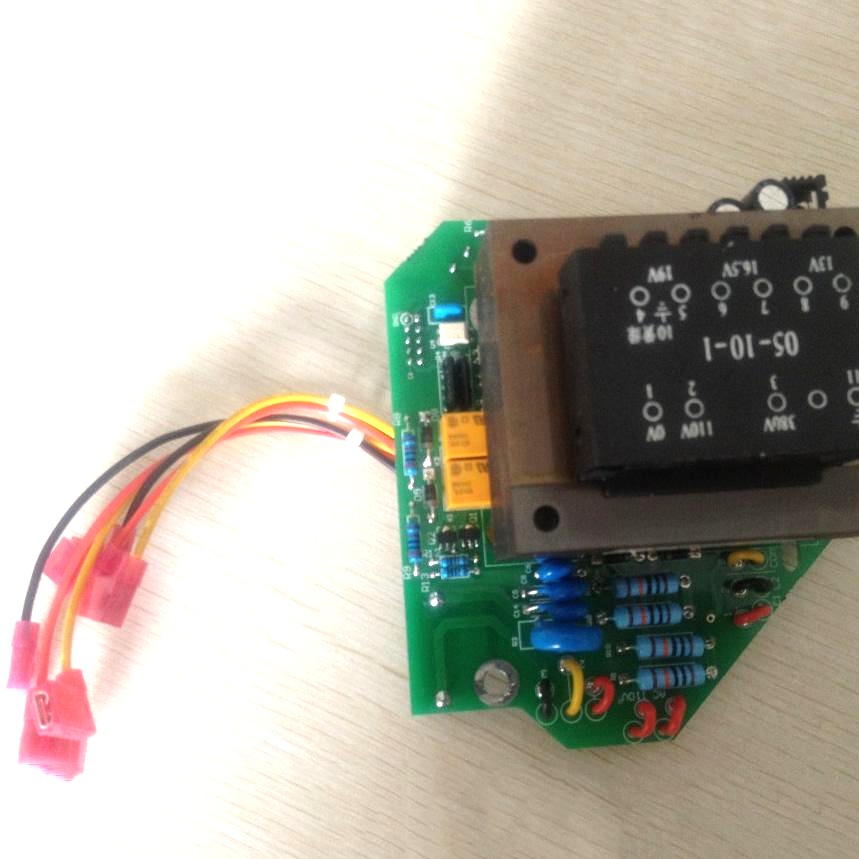

SHANGYI | 16-95AI Power Supply Motherboard, AIMI Electric Actuator

1. Main features of AI and MI intelligent electric actuators:

Classic mechanical torque sensor, stable performance, reliable operation. Pulse digital Hall effect displacement sensor with high accuracy and strong adaptability. Ultra-large scale integrated chip is adopted to make the actuator have powerful functions. Full Chinese and character display, menu-based operation, highlight the advantages of simple debugging and convenient operation. Double seal structure design, no through shaft design and no need to open the cover, setting and operation through remote control, is the guarantee of protection level IP68.2. Functions of AI and MI intelligent electric actuators:

Remote control setting function Actuator display function Travel limit protection function Torque limit protection function Status indication Contact function

1) Mid-way limit
2) Actuator is opening 9) Valve closing interlock
3) Actuator is closing 10) Handwheel operation
4) Actuator is running 11) Valve opening torque trip
5) Local stop 12) Valve closing torque trip
6) Local control 13) Torque trip during travel
7) Remote control

8) Valve opening interlock

Valve alarm function a, closing direction over torque
a, opening direction over torque
b, all-direction over torque
2) Blockage alarm function a, closing direction blockage
a, opening direction blockage
b, all-direction blockage control alarm function

1) Emergency event (ESD) alarm protection
2) Signal failure alarm protection

Actuator alarm function1) Motor overheat protection
1) Low battery protection
2) Internal power failure protection
3) Power phase loss and phase loss protection
4) Internal system failure protection
5) Current valve position signal loss protection
6) Local wiring fault alarm
