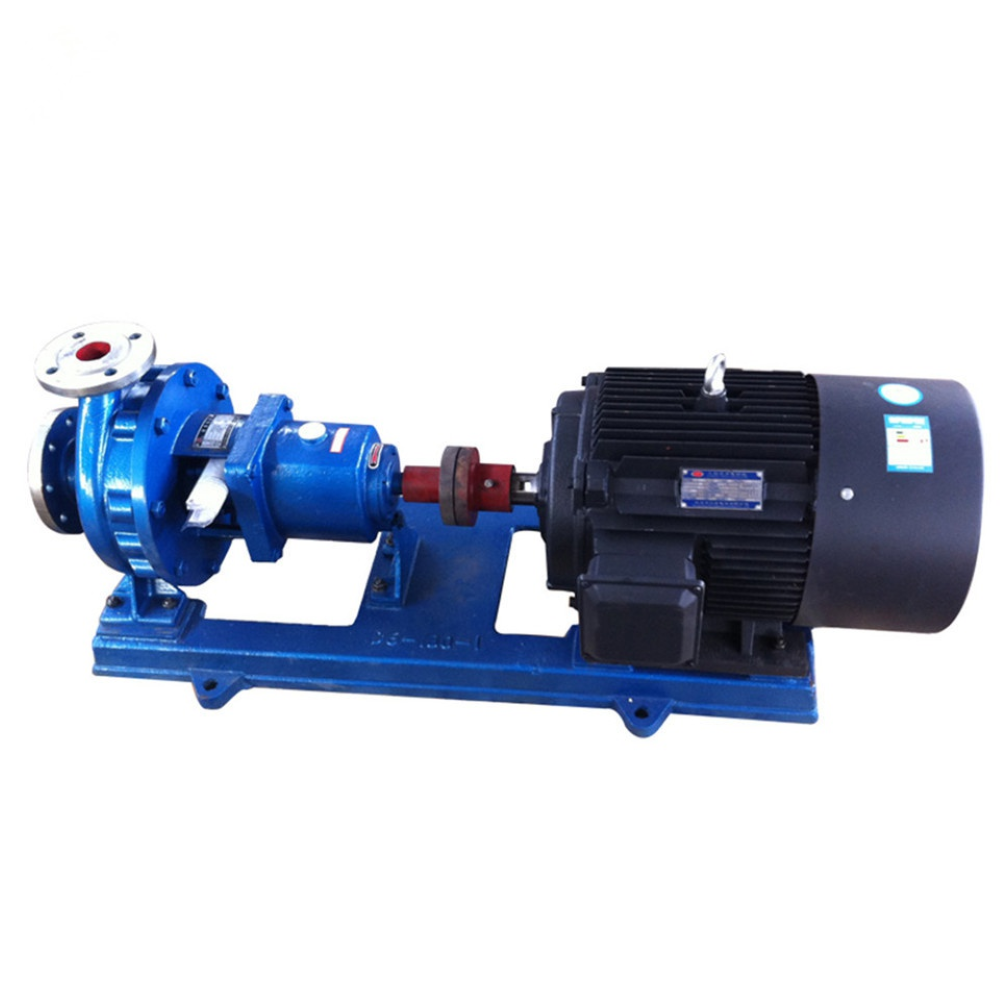

HORIZONTAL CHEMICAL PUMP
- Model : IH80-65-160A
- CAPACITY : 50m3/h
- HEAD : 28 m
- POWER : 7.5kw
- EFFICIENCY : 65%
- SPEED : 2900r/min
- Scope of Supply : Complette With Motor
- Brand : SHANDONG BOSHAN
IH chemical pump is a single-stage single-suction cantilever centrifugal pump used to transport neutral or corrosive media or petroleum products at temperatures between -20℃ and 105℃.
Performance range
Inlet diameter: 50-400mm; Flow rate Q: 2.7-1920 m3/h; Head H: 2.7-145 m; Power P: 1.1-280kw. ..
Application Environment
IH chemical pump is suitable for chemical, petroleum, metallurgy, electric power, papermaking, food, pharmaceutical, environmental protection, wastewater treatment and synthetic fiber industries to transport various corrosive or non-polluting water-like media.
IH chemical pump is a single-stage single-suction cantilever centrifugal pump used to transport neutral or corrosive media or petroleum products at temperatures between -20℃ and 105℃.
Features
There are many structural forms of pump shaft seals, the most commonly used is the internal non-balanced single-end mechanical seal. According to the working conditions, external, non-balanced or double-end mechanical seals can also be selected. The flushing and cooling method can be internal flushing or external flushing, and sealing additional devices can also be installed. For media with suspended particles or weak corrosiveness, soft packing seals (external flushing or internal flushing) can also be selected.
