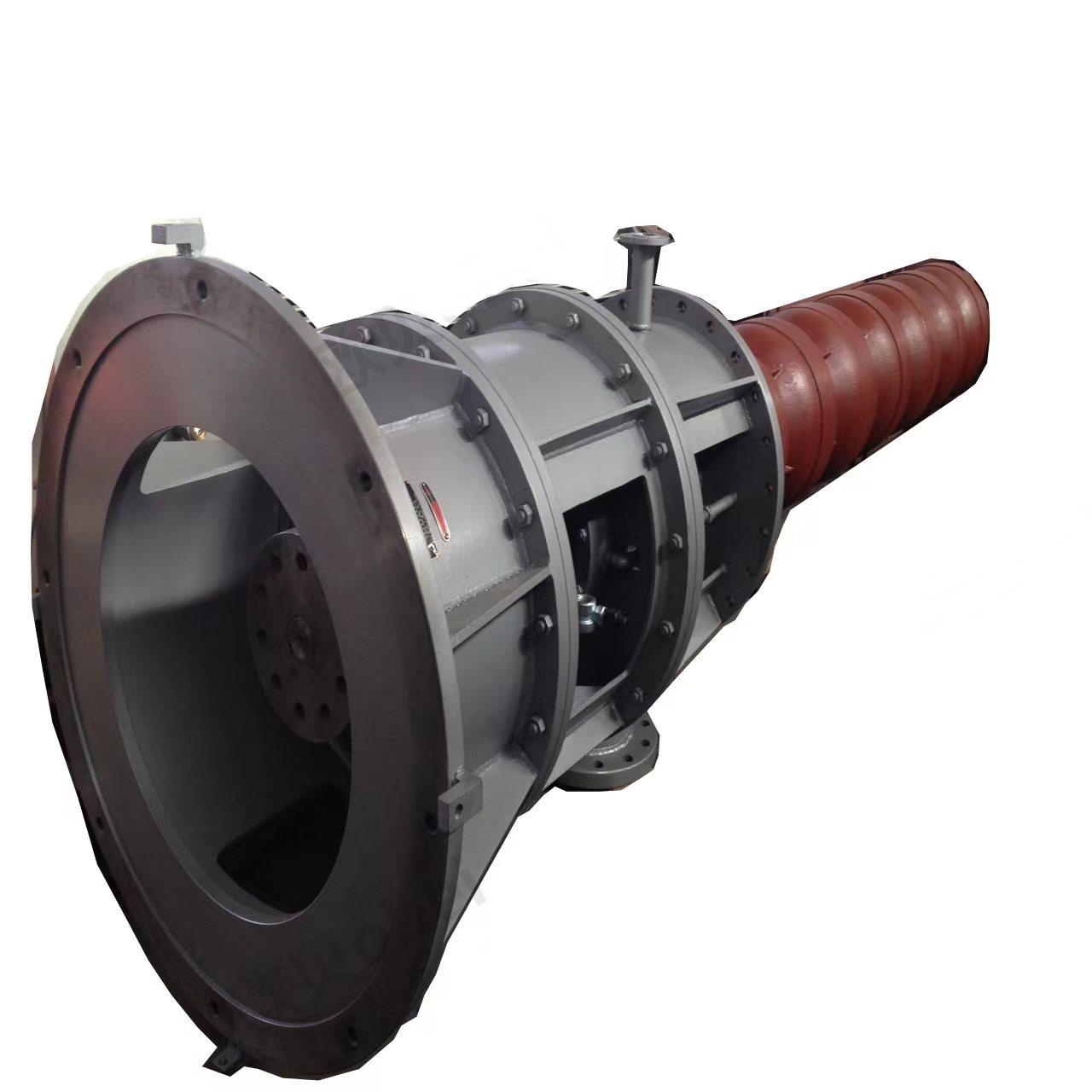

Condensate Pump 9LDTNB-5PS
Specification : 9LDTNB-5PS
Part No.: SGB2021020
Inlet connection size : DN600/PN0.6MPa
Outlet connection size : DN350/PN5MPa
Lift : 850
Flow : 310
Rated Power : 886
Sealing details : P11/Single end manifold
LDTN series condensate pump:
LDTN series condensate pump. It can be widely used for conveying steam turbine condensate or condensate pumps with similar media to condensate in 50-1000MW thermal power plants, and can also be used for water supply and drainage projects with high suction
Performance range:
Flow rate: Q=100~2000 m3/h
Head: H=42-360 m
The temperature of the transported liquid should not exceed 80 ℃, and if cooling measures are taken, the temperature of the transported liquid can reach 150 ℃.
Flow rate: Q=100~2000 m3/h
Head: H=42-360 m
The temperature of the transported liquid should not exceed 80 ℃, and if cooling measures are taken, the temperature of the transported liquid can reach 150 ℃.
Model Description:
Example: 9LDTNB-5P
9- represents a 300MW unit
LDTN vertical multi-stage cylinder bag condensate pump
B-B hydraulic model
5- represents level 5
P – represents with thrust device
Example: 9LDTNB-5P
9- represents a 300MW unit
LDTN vertical multi-stage cylinder bag condensate pump
B-B hydraulic model
5- represents level 5
P – represents with thrust device
Product Features:
1. High suction, i.e. with good cavitation performance.
2. Negative pressure countermeasures with a vertical, enclosed outer cylindrical structure.
3. The pump has high efficiency and a stable and smooth flow head curve.
4. Compact structure and small footprint.
5. High operational reliability, reasonable structure, and easy installation, disassembly, and maintenance
