Current Transmitter
Single-phase current, single-phase voltage transmitter mainly measures the current signal and voltage signal, and outputs 1 or 2 analog signals or outputs digital signals.
Specifications
| Parameter | Details |
|---|---|

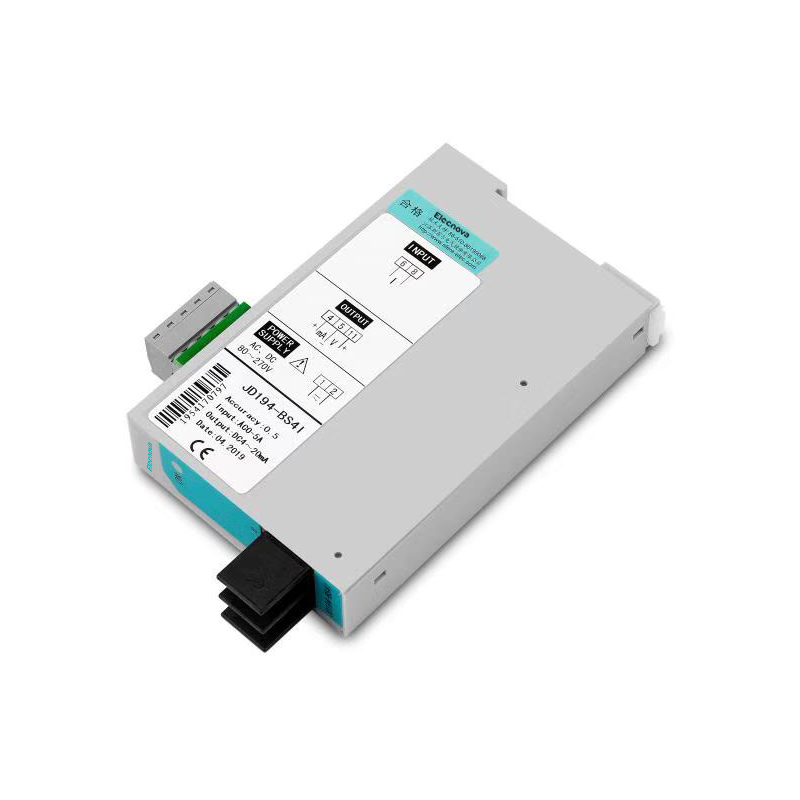

| Model | JD194-BS4I (also referred to as JD194-BS41) |
| Brand | SFERE Electric (Jiangsu Sfere Electric Co., Ltd.) |
| Input Current | 0–5A AC (via CT if needed) |
| Output Signal | 4–20mA (analog), optional 0–5V, 0–10V |
| Accuracy | ±0.5% |
| Power Supply | AC/DC 80–270V |
| Frequency Range | 45–65 Hz |
| Response Time | ≤400 ms |
| Load Capacity | ≤510Ω (current output), ≥20kΩ (voltage output) |
| Operating Temp | -40°C to +70°C |
| Humidity | ≤93% RH (non-condensing) |

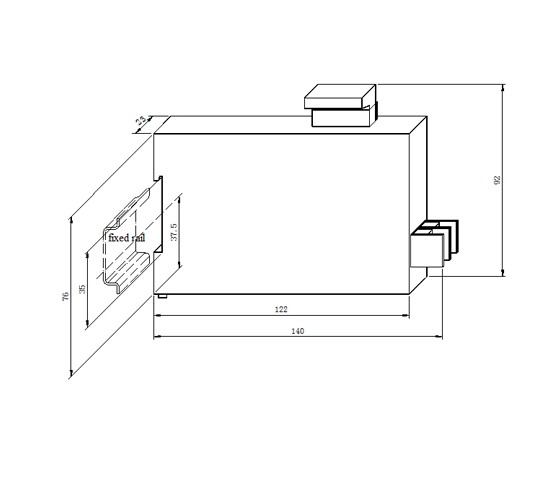

| Mounting | DIN rail or panel mount |
| Estimated Weight | ~0.5 kg |
| Certifications | CE, ISO9001 |
