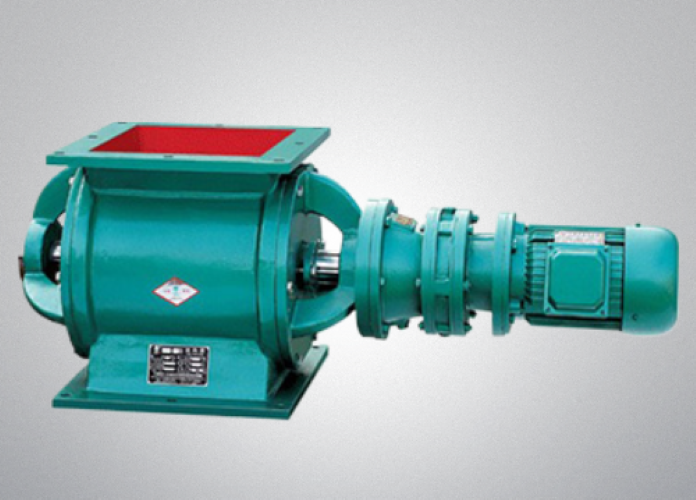

Sanyuan | XGF Star-Shaped Feed Valve

Overview:

The XGF star-shaped feeder valve is used for feeding and discharging materials. It is mainly used in industries such as chemical, environmental protection, pharmaceutical, and construction for feeding and discharging dry powdery and small granular materials.

Performance characteristics:

1. The seal between the left and right flanges of the machine body and the shaft adopts an advanced sealing method, which ensures a tight and reliable seal.

2. The material flow rate can be more accurately controlled by the speed regulating device.

3. The machine is exquisite, compact and lightweight, and comes in two types: direct drive (A) and chain drive (B).

4. The drive unit does not require a separate foundation, occupies little space, and saves costs.

5. The inlet and outlet flanges are available in two types: round flange and square flange. Users can choose either one according to their needs.

Parameters and selection:

Note:

1. The dimensions shown in this drawing are for user reference when making selections;

2. The external dimensions can also be designed according to the user’s specific requirements
