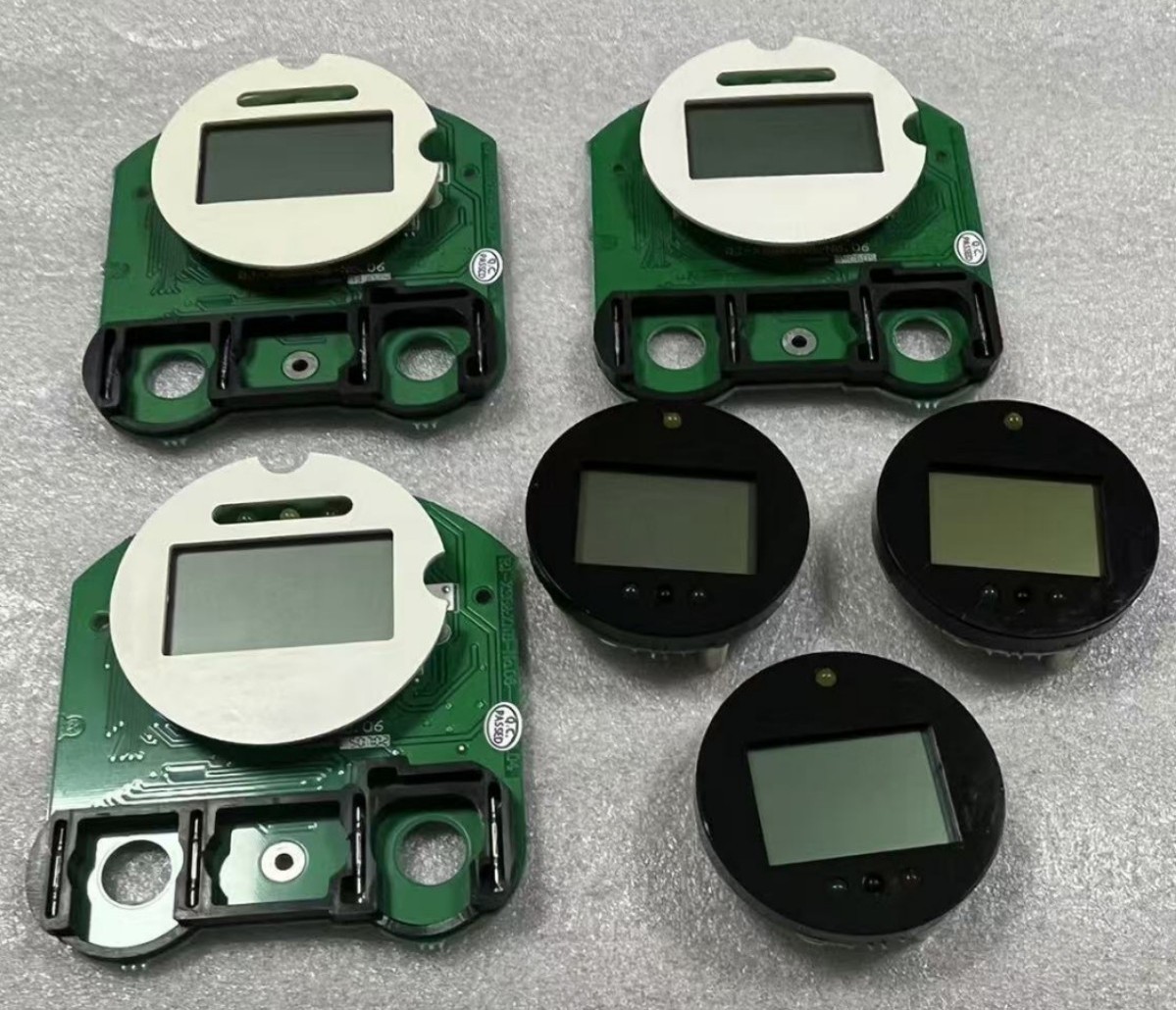

Display Control Motherboard
The RAGA RJ-XSB&XNB No.06 Display Control Motherboard is the main control and monitoring board for RJ-series electric actuators, manufactured by RICH Measure & Control Equipment Co., Ltd (China). It integrates actuator logic, relay interfacing, and LCD display functions.
Applications:
• Oil & Gas Pipelines: Valve actuation with precise control
• Water Treatment Plants: Monitoring and control of flow systems
• Power Generation: Integration with ESP and transformer systems
• Industrial Automation: Reliable actuator control and monitoring
Type : Intelligent control motherboard with integrated display
Model : RJ-XSB&XNB No.06
Series Compatibility: RJ-series actuators (RJ-15, RJ-28, RJ-50, RJM variants)
Function: Provides actuator control logic, power regulation, and LCD-based monitoring interface
Function: Provides actuator control logic, power regulation, and LCD-based monitoring interface
Display: LCD screen for torque, valve position, alarms, and parameter settings
Input/Output: Interfaces with actuator motor drive, encoder, and external sensors
Protection: Watertight housing, IP-rated for field operation
Dimensions (approx.): 50–70 mm × 40–50 mm (PCB size)
Estimated Weight: ~0.5–0.7 kg
Operating Voltage: Matches RJ actuator motor drive (typically 220–240 V AC)
Interface: Connects to encoder modules and actuator power boards
Input/Output: Interfaces with actuator motor drive, encoder, and external sensors
Protection: Watertight housing, IP-rated for field operation
Dimensions (approx.): 50–70 mm × 40–50 mm (PCB size)
Estimated Weight: ~0.5–0.7 kg
Operating Voltage: Matches RJ actuator motor drive (typically 220–240 V AC)
Interface: Connects to encoder modules and actuator power boards
Brand : RAGA
MFR : RICH Measure & Control Equipment Co., Ltd
