Display Board

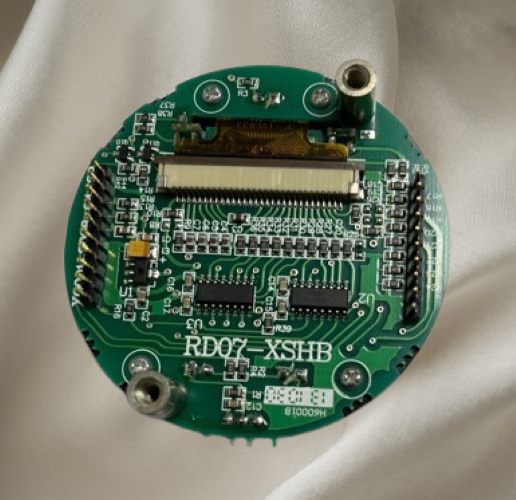

The RAGA RD07-XSHB Display Board is a specialized control/display module designed for RAIII4 Generation electric actuators. It is primarily used for actuator monitoring, parameter setting, and display integration.
Applications :
• Valve actuation in oil & gas pipelines
• Water treatment plants (environmental monitoring)
• Power generation systems (transformer/ESP integration)
• Industrial automation requiring precise actuator feedback
Type : Display Board
Model : RD07-XSHB
Generation: RAIII4 Electric Actuator Series
Function: Provides LCD-based actuator status display, alarm indication, and parameter configuration (torque, valve position, limit settings).
Display: LCD with multilingual (Chinese/English) graphical interface
Compatibility: RAIII actuator models (RAIII14AF14B4, RAIII15AF14B4, RAIII30AF16B, RAIII40AF25B, RAIII70AF25B)
Control Features: Non-intrusive IR handheld tool for parameter setting
Enclosure: Watertight housing, IP-rated for field operation
Dimensions (approx.): 40 mm × 36.25 mm × SL20 diameter (based on RD07 technical drawings)
Estimated Weight: ~0.3–0.5 kg (typical for actuator display boards)
Power Interface: Integrated with actuator control board
Compatibility: RAIII actuator models (RAIII14AF14B4, RAIII15AF14B4, RAIII30AF16B, RAIII40AF25B, RAIII70AF25B)
Control Features: Non-intrusive IR handheld tool for parameter setting
Enclosure: Watertight housing, IP-rated for field operation
Dimensions (approx.): 40 mm × 36.25 mm × SL20 diameter (based on RD07 technical drawings)
Estimated Weight: ~0.3–0.5 kg (typical for actuator display boards)
Power Interface: Integrated with actuator control board
Brand : RAGA
MFR : RICH Measure & Control Equipment Co., Ltd
