CPU Bag Controller Board Multi-Channel Pulse

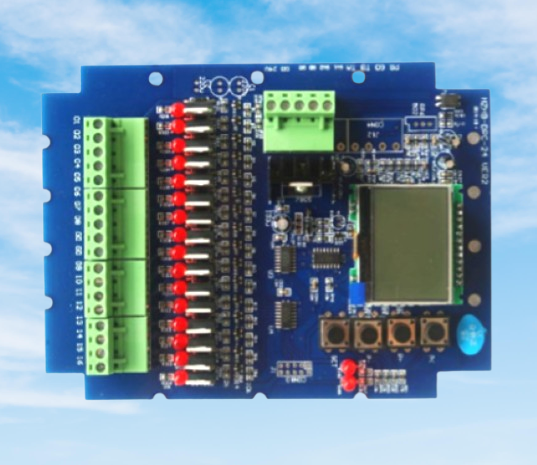

The LONGKING HZHB-DPC-24 UER2 HZCT-16B is a CPU bag controller board designed for multi-channel pulse control in industrial dust collection systems.
The HZTCX bag dust collector controller adopts a modular design, with two types of CPU modules (HZTCX-AX, HZTCX-BX, etc.) and output expansion modules (HZTCX-EX).
The CPU module uses a Chinese LCD display screen and is equipped with 4 buttons, providing users with a friendly human-machine interface. The CPU module provides 9 switch outputs, 1 switch input, and 2 analog inputs (PT100 temperature, 4-20mA pressure difference input). More output control can be achieved by adding corresponding expansion modules.
The HZTCX bag dust collector controller provides users with six optional working modes, multiple parameter settings, error parameter correction, power-off data retention functions, easy operation, low power consumption, small size, and reliable operation.
Technical Specifications:
-
- Model: HZHB-DPC-24 UER2 HZCT-16B
- Sort of Model : HZHB-DPC-24 UER2 HZCT-16B HZTCX-AX, HZTCX-BX, HZTCX-EAX, HZTCX-EBX
- Application: Used in baghouse dust collectors for precise pulse jet cleaning
- Channels: Multi-channel pulse control
- Voltage Rating: Likely AC 220V / DC 24V operation
- Control Type: Microprocessor-based control for optimized dust removal
- Display: Digital display for real-time monitoring
- Protection Features: Dust and moisture-resistant design
- Mfr : Longking Environmental Protection
