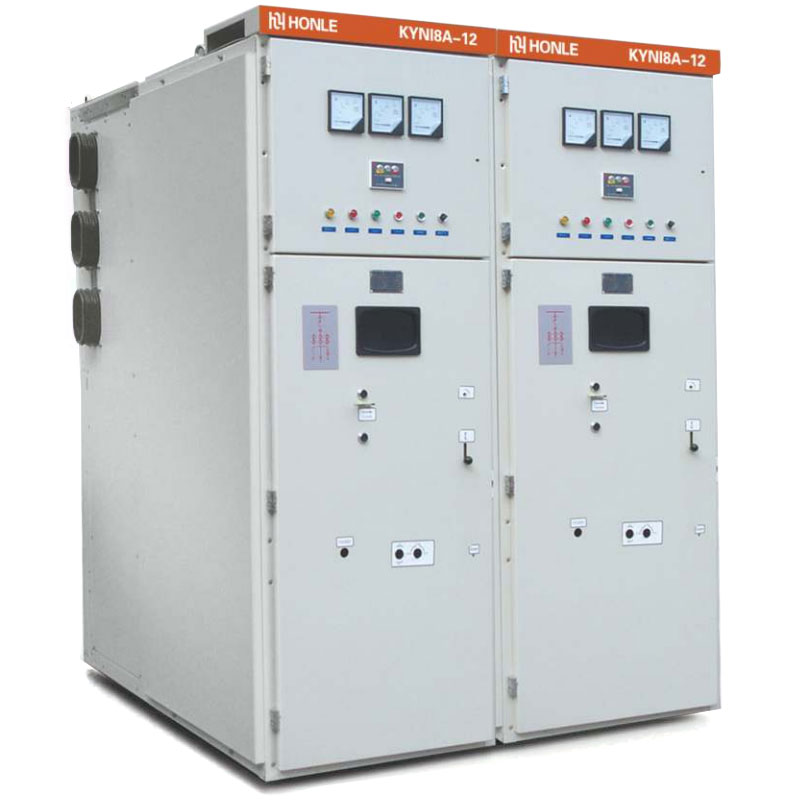

AC Metal-Clad Removable Switchgear
The KYN18C-12 is a high-voltage, metal-clad, removable AC switchgear designed for indoor applications. It features a vacuum circuit breaker, earthing switch, and modular compartments for safe and reliable power distribution. It’s commonly used in substations, industrial plants, and power generation facilities.
Brand : HONLE GROUPS
Technical Specifications
| Attribute | Value |
|---|---|
| Model | KYN18C-12 |
| Rated Voltage | 7.2 kV |
| Rated Frequency | 50 Hz |
| Rated Current | Up to 1250 A |
| Short-Circuit Current | Up to 31.5 kA |
| Protection Level | IP4X |
| Insulation Level | 12/42/75 kV (Power frequency/Lightning impulse) |
| Ambient Temp | -10°C to +40°C |
| Altitude | ≤1000 m |
| Humidity | ≤95% RH daily average |
| Compartments | Busbar, Circuit Breaker, Cable, Relay |
| Earthing Switch | Rapid open-close operation, short-circuit withstand capability |
| Estimated Weight | ~800–1200 kg per panel |
| Mounting | Indoor, floor-mounted |
KYN18-12 removable AC metal-clad switchgear is a new product designed and d evelo ped b y HEAG group based on advanced foreign de sign and technology. Its outstanding advantages as follows:
1. The enclosure is completely made of aluminium-zinc plated steel sheet which processed by CNC machine, then assembled with bolts.
The structure is free from corrosives and deformation.
2. LV compartment and HV compartment are completely separated by metal sheet. It prevents from spreading to other parts due to IP4X of protection degree.
3. Effective anti-fault interlock assure that each operation step is according to specified procedure.
4. Integrated and reliable performance assure that it is free from maintenance.
5. The handcart is flexible to draw out and change.
6. Earthing switch with rapid open-close operation function has such capacity on short circuit current.
7. Secondary wiring will be buried in metal channel to prevent damages from internal failures.
OPERATING CONDITIONS
1. Ambient temperature: -10 ~+40 ;
2. Altitude: 1000m;
3. Relative humidity: monthly average 90%, daily average 95%;
4. Applicable occasions should be free from inflammable, explosives and severe vibration.
MODEL
STRUCTURE FEATURE
1. The enclosure is made of aluminium-zinc plated steel sheet or cold rolled iron sheet after processed by CNC machine and multi-bending, so guarantee advantages of high precision and strong corrosion preventions.
2. The complete panel is divided into four separate compartments, those are busbar compartments, handcart compartment, cable compartments and relay compartment. It is equipped with five protection lock device.
3. There is a exhaust channel spreads to the top in every compartment. The coping will open automatically to release pressure and guarantee the security of operator.
4. There is a valve mechanism among handcart compartment, busbar compartment and cable compartment. The valve closes automatically when the handcart is drawn out, then cover the main static contact to guarantee the security of maintenance man.
