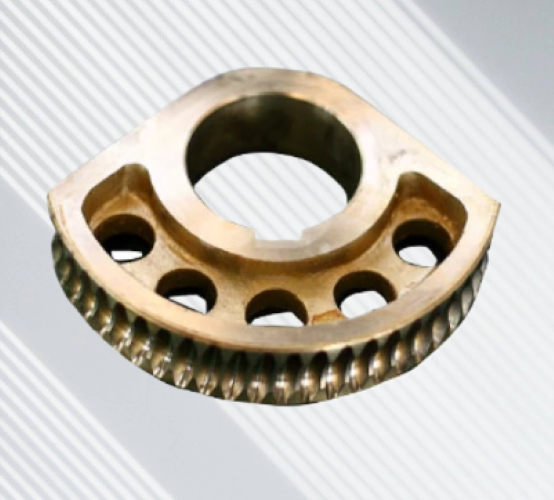

Worm Gear
Type: Worm Gear (gear segment or full gear assembly)
Model: Typically embedded in RS Series, Z120+RS, and JD Series actuators
MFR : JINDA ACTUATOR
Steel wheel core, tin phosphor bronze rim casting process, The perfect combination of copper and steel, higher strength and better wear resistance
Product Overview:
The worm gear is a precision-machined gear segment used in multi-turn and quarter-turn electric actuators from Tianjin Jinda Actuator Co., Ltd. It works in tandem with a worm shaft to provide high torque output, compact gear reduction, and self-locking behavior—ideal for industrial valve control.
Specifications:
| Feature | Specification |
|---|---|
| Material | Bronze alloy or hardened steel |
| Gear Profile | Helical teeth matched to worm shaft pitch |
| Gear Ratio | Varies by actuator model (e.g., 1:40 to 1:120) |
| Surface Treatment | Anti-corrosion coating, phosphating, or nitriding |
| Mounting | Integrated into actuator gearbox housing |
| Lubrication | Grease-filled or sealed oil bath |
| Torque Capacity | Supports actuator torque range from 80 Nm to 13,600 Nm |
| Self-locking | Yes (prevents back-driving of valve stem) |
Dimensions & Weight:
- Outer Diameter: Typically 80–200 mm
- Thickness: Approx. 20–40 mm
- Weight: Estimated 1.5–5.0 kg, depending on size and material
Applications:
- Electric valve actuators (multi-turn and quarter-turn)
- Power plant auxiliary systems
- Water treatment and wastewater control
- Petrochemical and refinery automation
- HVAC and building management systems
