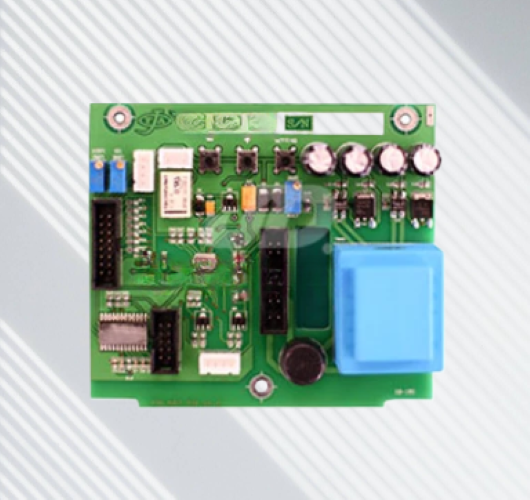

Control Board
Type: Electric Actuator Control Board
Model: JDIDL-A
MFR : JINDA ACTUATOR
Product Overview:
The JDIDL-A is a control board designed for electric actuators, particularly those used in valve positioning systems. It supports analog signal input/output, feedback control, and multi-voltage compatibility, making it suitable for a wide range of industrial applications.
Specifications:
| Feature | Specification |
|---|---|
| Input Signal | 4–20 mA |
| Input Resistance | 250 Ω |
| Output Signal | 4–20 mA (isolated from input) |
| Output Resistance | 0–500 Ω (up to 750 Ω for custom needs) |
| Feedback Potentiometer | 0–1 kΩ |
| Basic Error | ±1% |
| Dead Zone | Adjustable 0–3% |
| Ambient Temperature | −25°C to +55°C |
| Humidity | ≤90% RH (non-condensing) |
| Voltage Compatibility | AC 220V / AC 80V / AC 415V |
| Phase Options | Single-phase or three-phase versions available |
Dimensions & Weight:
- Size: Approx. 25 × 20 × 10 cm
- Weight: Around 200 grams
Applications:
- Electric valve actuators (e.g., butterfly, ball, gate valves)
- Industrial automation systems
- Water treatment and HVAC control
- Oil, gas, and chemical processing
- Power plant auxiliary systems
