Electric Operator
Model : DFD-0900/0700
MFR : JINDA ACTUATOR

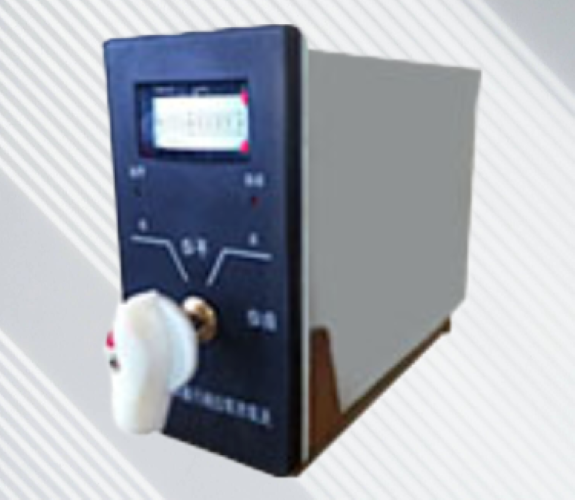

The DFD-0900/0700 electric operator is an auxiliary unit in the DDZ electric unit combination instrument. It is suitable for various automatic control systems consisting of DDZ transmitter units, control units, and electric actuators. The electric operator enables disturbance-free switching between automatic and manual operating states in automatic control systems and remote manual operation. The operator panel displays LEDs for “Manual,” “Auto,” and limit switches. A dual-needle ammeter indicates the regulator’s output current and the actuator’s position feedback current, respectively.
Main technical specifications:
| Power supply voltage | AC220V, 50Hz |
| Switch contact capacity | Main circuit 500V, 15A Signal circuit 100V, 0.1A |
| Tracking voltage | 1~5V DC |
| Tracking resistor | 250Ω |
| Usage Environment | Ambient temperature: 0-50°C, humidity ≤ 85%, non-condensing. Operating vibration frequency ≤ 25Hz, amplitude ≤ 0.1mm (double amplitude). Avoid corrosive gases in the air. |
| structure | Standard snap-on |
