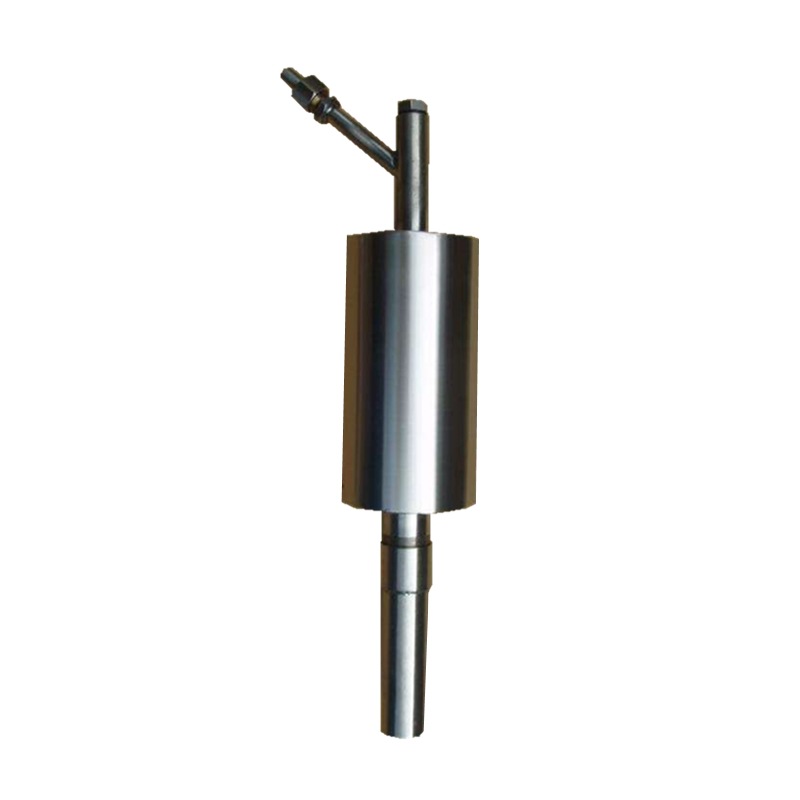

FYQ3 Stainless Steel Anti-Blocking Wind Pressure Sampler

Deskripsi

FYQ3 Stainless Steel Anti-Blocking Wind Pressure Sampler

Measuring the wind pressure or differential pressure of dusty gas, the sampling device is blocked by dust and the instrument cannot operate continuously and normally, which is very unfavorable to safe production. The sampler has been scientifically analyzed and carefully designed. It has been proved by the long-term operation experience of the power plant that it is used in the wind pressure measurement of the pulverizing and conveying (coal powder) system and the furnace, the measurement of the air duct, etc.

The sampler is connected up and down, which is easy to install and maintain. The built-in cyclone separation anti-blocking structure can effectively separate the dust in the gas, ensure that the pressure pipe will not be blocked, and no gas source is required, so as to achieve the purpose of once and for all.

Main features :

1. Simple structure and low price.

2. No gas source is required, there is no problem of complex system and large installation workload.

3. No energy consumption and maintenance are required.

4. No additional measurement error.

5. The sampler is installed vertically.

Measuring static pressure, the device is designed and manufactured based on the principle of cyclone separator, with cyclone separation structure, which can achieve different effects from general anti-blocking devices
