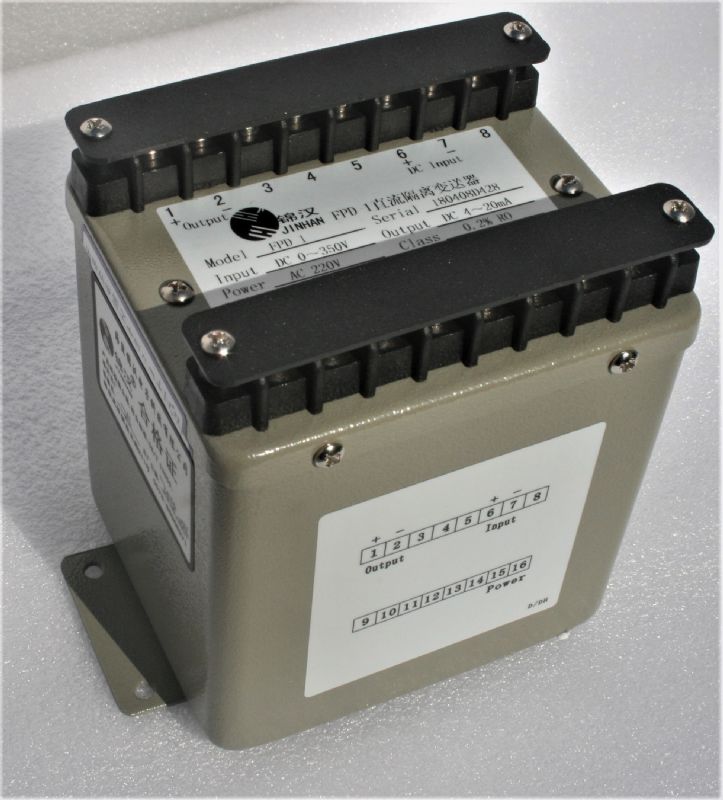

DC High Voltage Isolation Transducer
Model : FPDH-1
Brand : Haiyan Jinhan Electronic,Co..Ltd
Introduction:
The FPD Series DC Isolation Transmitter is an instrument that converts a DC voltage or current signal into a linearly proportionally different DC voltage or current signal that is electrically isolated from each other. It can be used to measure the generator rotor voltage and current, and can be widely used in various other occasions.

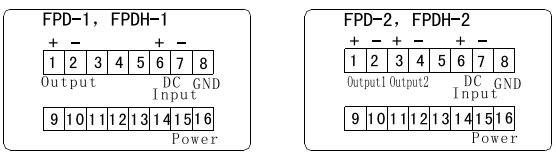

The main models are as follows:
FPD-1：Single output DC isolation transducer
FPD-2：Dual output DC isolation transducer
FPDH-1：Single output DC high voltage isolation transducer
FPDH-2： Dual output DC high voltage isolation transducer
Specification
| Accuracy ( 23±3℃) ： | 0.2% of effecive range | |
| Linearty & repeatability | 0.05% typical | |
| Maximum output load | DC current mode : maximum 10V drop
DC voltage mode : maximum 5mA drive |
|
| Dielectric strength | 2000Vac…power / input & output terminals…… FPD
2000Vac…input / output / case…………………FPD 4000Vac … power / input & output terminals………FPDH 4000Vac … input / output / case…………………… FPDH |
|
| Output drive capability | ≤10mA for voltage mode, ≤10V for current mode | |
| Maximum input over | ≤300Vrms continuous> 2V ranges
≤150Vrms continuous≤2V ranges ≤150mA continuous for current input |
|
| Input resistance-ohm | ≤100M … ≤2V ranges,≤500K >2V ranges
≤20 for all current input range |
|
| Response time & ripple | 250 ms typically, ripple 0.1% rms ro | |
| Power effect | < 0.003% for per volt chang | |
| Common mode rejection | 120dB, DC to 60Hz | |
| Temperatured stability | ≤0.007% ro per degree℃ | |
| Storage condition | Temperature range -10 to 70°C, RH 20 to 95% non condensed | |
| Operating condition | Temperature range -5 to 55°C, RH 20 to 95% non condensed | |
| Power supply | ±10% of rated, less 3.5 VA for AC input
±10% of rated, less 3.5 Watt for DC input |
|
| Construction | Socket plug-in type with barrier terminals |
Input & Output parameters
| An:电流输入范围
Input Ranges Current |
Vn：电压输入范围
Input Ranges Voltage |
Pn：电源 rating
Aux. Power Standard range |
||||
| A1
0-1mA |
A2
0-2mA |
V1
0-50mV |
V2
0-100mV |
V3
0-200mV |
P1
AC110 V 120 V ± 15% |
PD1
DC110V 120 V ± 15% |
| A3
0-5mA |
A4
0-10mA |
V4
0-500mV |
V5
0-1V |
V6
0-2V |
P2
AC220 V 240 V ± 15% |
PD2
DC220V 240V± 15% |
| A5
0-20mA |
A6
4-20mA |
V7
0-5V |
V8
1-5V |
V9
0-10V |
Ps
Internal Power |
PD3
DC24 V 24 V ± 20% |
| A7
0-50mA |
A8
10-50mA |
V10
2-10V |
V11
0-120V |
V12
0-200V |
Py
Specified |
PDy
Specified |
| A9
0-75mV |
V13
0-350V |
V14
0-600V |
||||
| On:输出
Output Range |
O1
0-1mA |
O2
0-20mA |
O3
4-20mA |
O4
0-5mA |
O5
0-10mA |
|
| O7
0-1V |
O8
0-5V |
O9
0-10V |
O10
2-10V |
O11
1-5V |
O13
用户指定 |
