Flame Detector Discrete Detectors (Separate Amplifier)
Model : IDD-II / IDD-IIU
Brand : FORNEY
Intelligent Dynamic Detector (IDD) II Series is designed to accurately detect and discriminate the luminous flames produced by burning oil, coal, and lignite fuels.

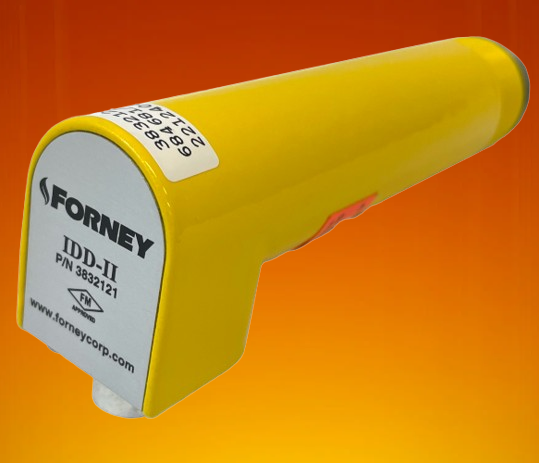

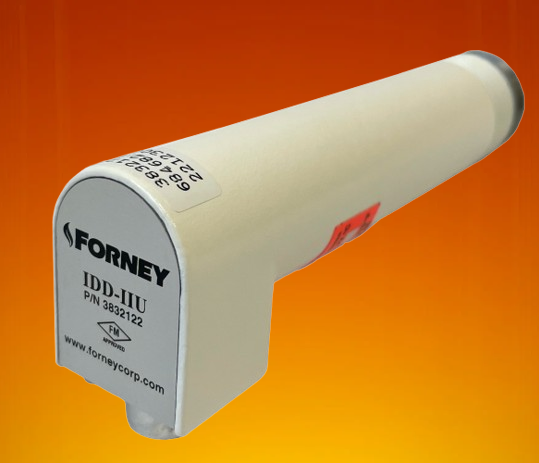

The IDD-II (Filtered) flame detector is typically used for sensing heavy fuel oil and coal flames. The IDD-IIU (Unfiltered) flame detector is typically used for sensing light fuel oil flames.
The IDD-II Series is used in conjunction with Forney’s supporting amplifier the IDD-9000.
When a flame is sensed, the IDD-II’s solid-state circuitry amplifies the continuously varying voltage signal emitted by the lead sulfide sensor. The signal is sent via a four-conductor cable to an amplifier, which processes the signal and provides an output to the burner management system. For trouble-free operation, the detector electronics are enclosed in a cast steel housing. Furthermore, the amplifier initiates periodic electronic self-tests of the sensor and printed circuit board to verify proper operation of the detector assembly.
Specification :
| Attribute | IDD-II | IDD-IIU |
|---|---|---|
| Flame Type | Heavy fuel oil, coal | Light fuel oil |
| Spectral Response | 700–3300 nm | 400–3300 nm |
| Operating Temp | 0–60 °C | 0–60 °C |
| Storage Temp | −32–60 °C | −32–60 °C |
| Housing | Cast steel, NEMA 4 | Cast steel, NEMA 4 |
| Mounting | 1″ NPT male pipe | 1″ NPT male pipe |
| Viewing Angle | 120° unrestricted | 120° unrestricted |
| Recommended Angle | 3–5° to burner center | 3–5° to burner center |
| Weight | ~0.59 kg (1.3 lbs) | ~0.59 kg (1.3 lbs) |
| Cable Length | Up to 402 m (1320 ft) | Up to 402 m (1320 ft) |
