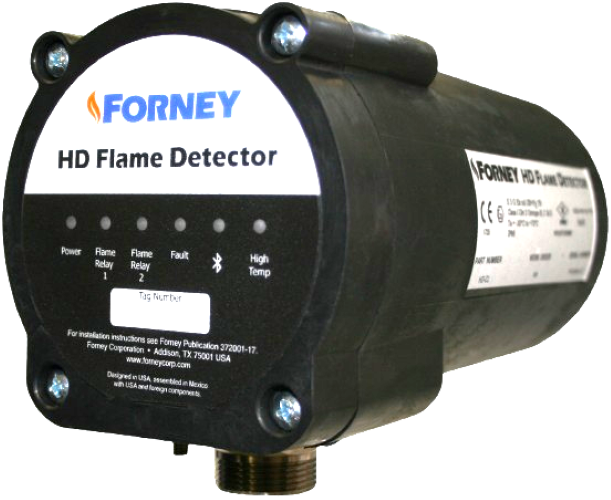

Flame Detector (Infrared + Ultraviolet Sensor Integration)
Model : HD
Brand : FORNEY
High Definition (HD) Flame Detector integrates both Infrared (IR) and Ultraviolet (UV) optical sensors along with an amplifier and high speed signal processor. The high speed signal processor is able to analyze frequency resolution allowing for precise discrimination between multiple burners and background radiation. HD Detector includes two flame relays, one for signals from each optical sensor. Four different profiles are selectable for maximum flexibility under different operating conditions. 4 to 20mA analog outputs are provided for remote display options
Specification :
| Attribute | Value |
|---|---|
| Sensor Type | Dual IR + UV optical sensors |
| Signal Processing | FFT-based frequency analysis |
| Outputs | 2 flame relays, 4–20 mA analog, RS485 Modbus |
| Profiles | 4 selectable flame profiles |
| Mobile Interface | Bluetooth (iOS/Android apps) |
| Fault Diagnostics | LED indicators + app-based fault codes |
| Housing | IP66 rated, RoHS compliant |
| Operating Temp | −40 to +85 °C |
| Weight | ~1.8 kg (estimated) |
| Mounting | 1″ NPT male pipe |
