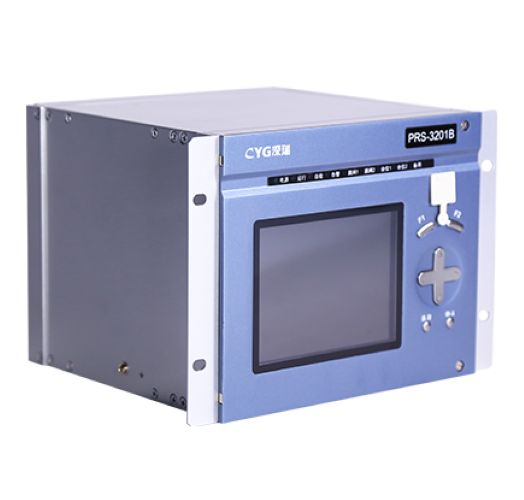

Micro-Grid Central Controller
Model : PRS-3201
MFR : CHANGYUAN SUNRI
Product Description
The PRS-3201 microgrid central controller is usedin the coordinated control and protection of micro-grid. In grid-connected and island states,stable and economical operation of the power grid can be maintained viaeffectiveandcoordinated control of various distributed power sources (DG) including energy storage equipment and diverse loads. Effective access and utilization of various distributed power sources can also be realized. PRS-3201 can be used intheAC micro-grids, DC micro-grids and AC/DC hybrid micro-grids with various voltage levelsin the range of 0.4~35kV,which has the advantages of fast adjustment speed, high precision, and good follow-up performance, and itcan achieve second-level follow-up delay. In addition to satisfying planned charging/discharging and AGC adjustment, the system supports active balanced management of battery pack SOC to ensure the charging and discharging capacity ofpower station. It also supports functions such as diagnostic warning and panoramic analysis, which can effectively ensure the life andsafety ofhigh-value assetsin the energy storage system.
Scope of Application :
User side energy storage power station
Independent micro-grid
Grid-connected and off-grid micro-grid
AC-DC hybrid micro-grid
Micro-gridtraining room
Wind and PV power storage and charging stations
Technical Features :
The I IEC-61850-8-1/MMS standard protocol is supported between theupward communication and the EMSmain station, whichmeet the requirementsofstandard interoperability.
It supports access to micro-gridlocal controllers and related terminal devices that do not support the Goose protocolvia the front-end communication management computer,which canprovide sufficient flexibility and compatibility.
The control network supports dual network redundant configuration, which can further improve reliability.
The control network and the monitoring network are independent. The control network adopts the IEC-61850/GOOSE multicast communication protocol, which can realize millisecond-level real-time dynamic response control of the micro-grid.
It has plug-in hardware design and modular software design based on universal bus backplane technology,which can provide good functional expansion.
Based on the mature protection and control platformand theshelf technology of CYG SUNRI, the maturity and reliability of platform have been fullyprovedin the operation of protection, measurement and control devicesin thousands of intelligent substations.
Specifications/Submodels :
| Environmental parameters | |
| Parameter | Index |
| Normal working temperature | -40℃～+70℃ |
| Maximum change rate of the ambient temperature | 1℃/min |
| Relative humidity | 5%～l00% |
| Maximum absolute humidity | 35g/m³ |
| Atmospheric pressure | 70kPa～106kPa |
| Altitude | <6000m |
| Rated electrical parameters | |
| Parameter | Index |
| Frequency | 50Hz |
| Voltage input nominal value | 690/380V/100V (line voltage) |
| Current input nominal value | 5A/1A |
| DC power | 220V/110V |
| AC power | 220V |
| Power consumption | AC voltage circuit: <0.25VA/phase |
| AC current circuit: <0.25VA/phase | |
| Overload capacity | AC voltage: 2 × rated voltage, continuous operation |
| AC current: 2 × rated current, continuous operation | |
| 20 × rated current, allowed for 1s | |
