Automatic Transfer Switch
Series : HYCQ7-100
Brand : Siqi Technology Co., Ltd
Feature :
The HYCQ7 automatic transfer switches are suitable for emergency power systems operating at 400V with a rated current of 60A and an AC frequency of 50Hz or 60Hz.
They feature a compact structure, reliable power conversion, and easy installation and maintenance.
These switches have a long lifespan and find wide application in scenarios where continuous power failure is not permissible.
They can be operated electrically or manually using an ATS (Automatic Transfer Switch), and their controller meets the requirements specified by IEC60947-6-1 and EC60947-3 for low-voltage switchgear and control gear, ensuring functional equipment and transfer switch equipment compliance.
Specification :
| Model | HYCQ7 | |
| Rated current le A | 10 16 20 25 32 40 50 63 | 80 100 |
| Insulation voltage Ui | AC 690V | |
| Rated voltage Ue | 2P:AC230V | 4P:AC400V |
| Grade | Grade PC:able to male and withstand , not to break short-circuitcurrent | |
| Use category | AC -33iB | |
| Pole | 2P | 4P |
| Weight ( kg ) | 0.68 | 0.91 |
| Life | Electrial :2000times; Mechanical :5000times | |
| Rated conditional short – circuit current lq | 50kA | |
| SCPD ( fuse ) | RT16-00-63A | |
| Rated impulse withstand voltage | 8kV | |
| Control circuit | Rated control voltage Us :AC220V,50Hz Correct working condition 85%Us-110%Us | |
| Auxiliary circuit | AC220V/AC110V50/60HZ | |
| Contact transter time | <50ms | |
| Operating transfer time | <50ms | |
| Return transfer time | <50ms | |
| Off – time | <50ms | |
| Temperature range | -5’C ~+40’C average temperature not more than 35’C in 24 hours | |

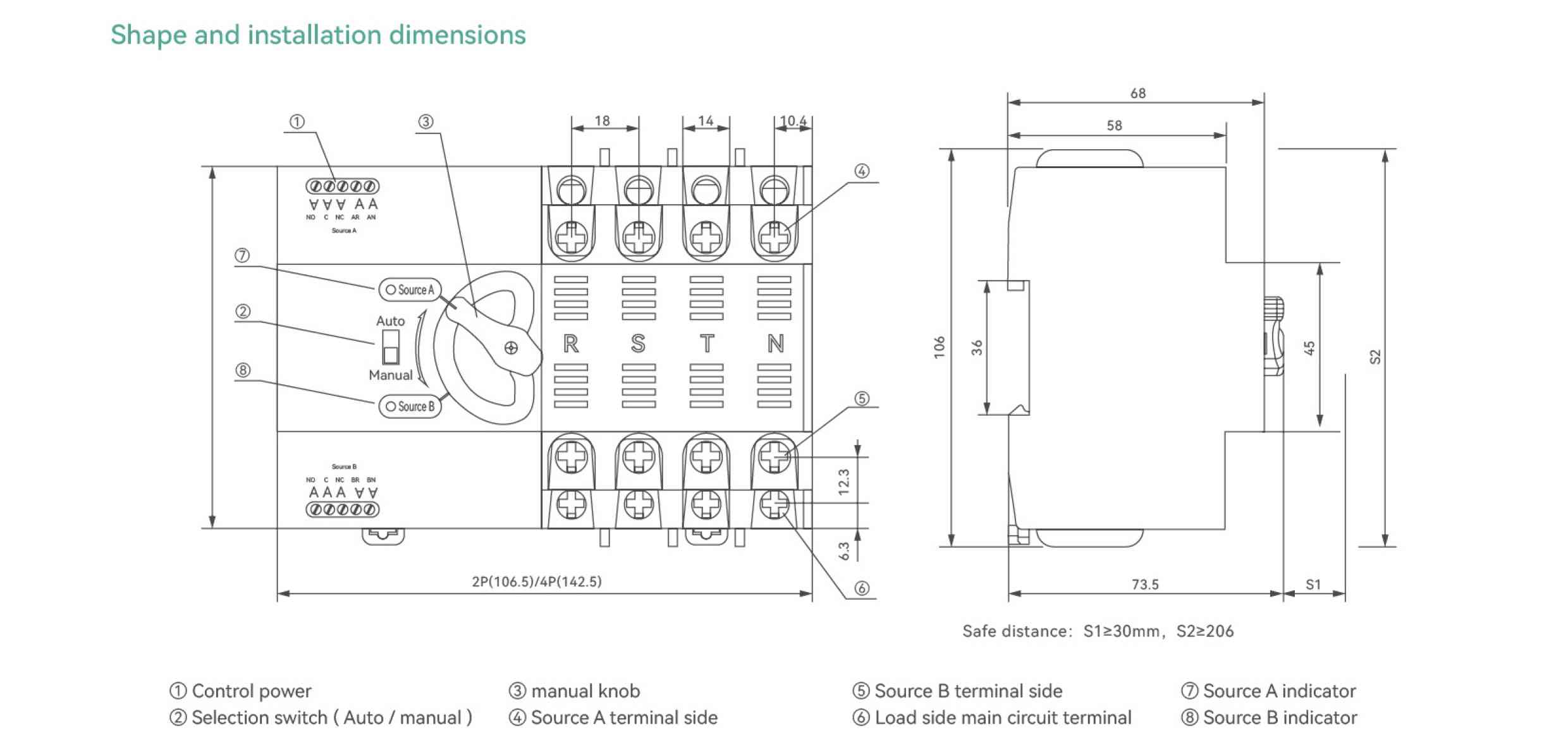

Installation Dimension :

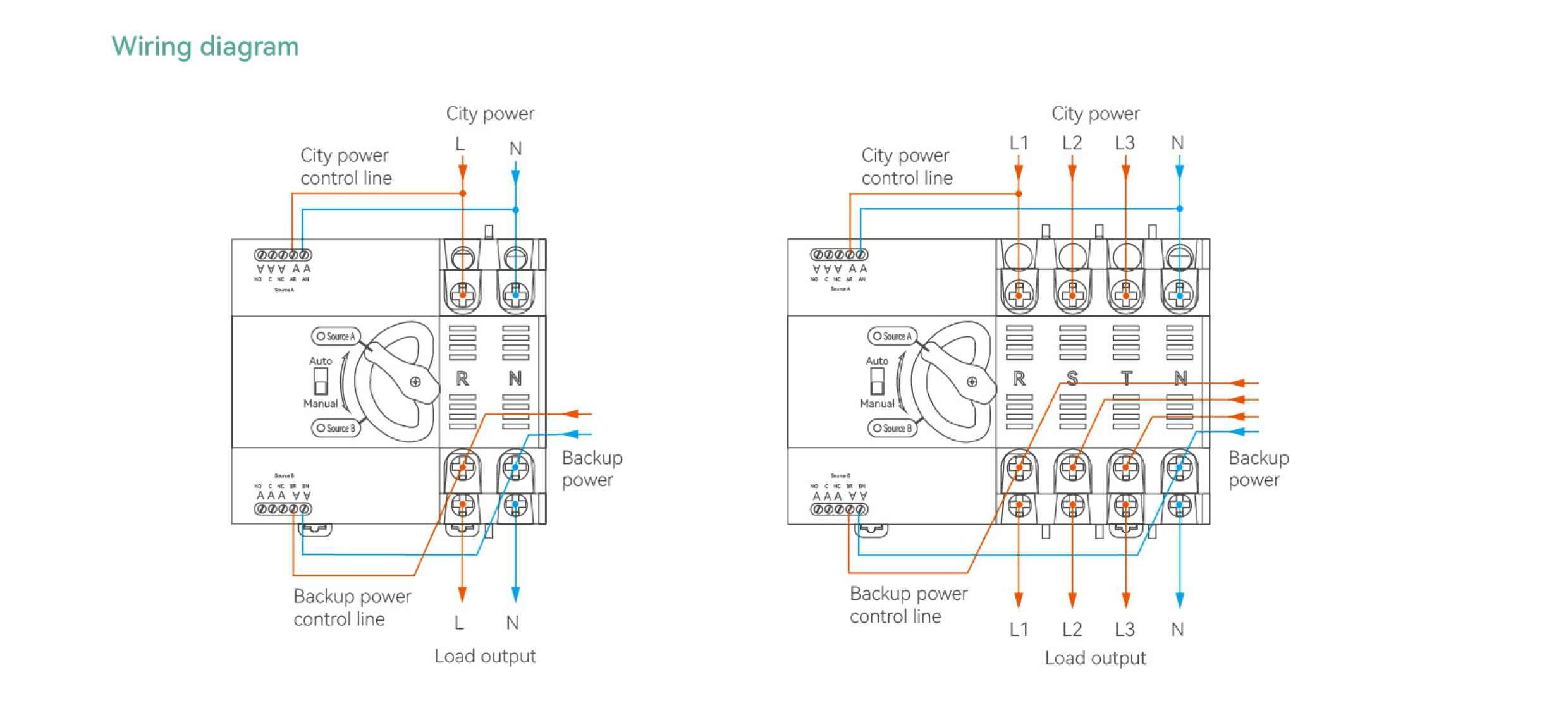

Wiring Diagram :
