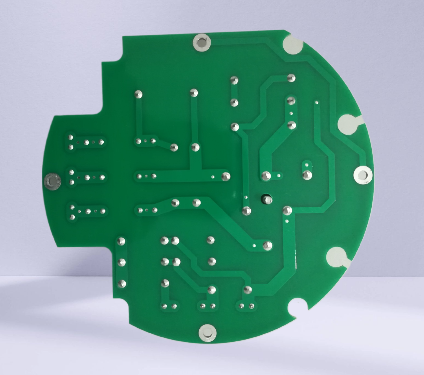

Power Board

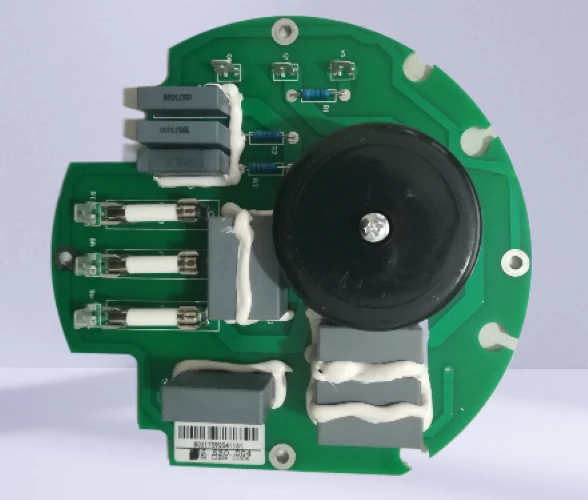

Chongqing Chuanyi Actuator M8000 Power Board ME5.530.004, a critical spare part for M8000 series intelligent actuators used in power plants, petrochemical, and heavy industry.
- Type: Power Board / Control Module
- Model: ME5.530.004
- Part Number: ME5.530.004 (sometimes cross‑referenced with ME8.530.004 in later revisions)
- System Compatibility: Chuanyi M8000 series actuators (multi‑turn and quarter‑turn)
-
Brand : CHONGQING CHUANYIMFR : SICHUAN INSTRUMENT / KAWAII
Product Overview:
The ME5.530.004 power board is the main power distribution and drive board for Chuanyi M8000 actuators. It converts incoming AC/DC supply into regulated voltages for the CPU board, drives the actuator motor, and provides overload, surge, and thermal protection. It is essential for actuator operation and reliability.
Specifications (typical for ME5.530 series boards):
| Feature | Specification |
|---|---|
| Function | Power supply + motor drive + protection |
| Input Voltage | 220 VAC or 24 VDC (depending on actuator model) |
| Output Voltages | 24 VDC logic, auxiliary rails |
| Motor Drive | Provides controlled power to actuator motor |
| Protection | Over‑voltage, over‑current, surge suppression, thermal cutoff |
| Interface | Connectors to CPU board, motor, feedback modules |
| Operating Temp | −20 °C to +70 °C |
| PCB Coating | Conformal coating for humidity/corrosion resistance |
| Compliance | IEC/GB industrial standards |
Dimensions & Weight:
- Dimensions: ~200 × 120 × 30 mm
- Weight: ~0.5–0.7 kg
Applications:
- M8000 series actuators – multi‑turn and quarter‑turn
- Steam turbine valve control – power plants
- Oil & gas pipelines – valve automation
- Petrochemical plants – process valve control
- Water treatment – pump and valve actuation
