Chongqing ChuanYi | M8500 Intelligent Frequency Conversion Electric Actuator

Series : M8500

Product Name : Intelligent Frequency Conversion Electric Actuator

M8510, M8520, M8530, M8540, M8550 intelligent variable frequency switch actuator (electric device)

M8510S, M8520S, M8530S, M8540S, M8550S single-phase intelligent variable frequency switch actuator 220V.AC

M8510+A8005KD, M8510+A8010KD, M8510+A8020KD, M8520+A8020KD, M8520+A8040KD,

M8530+A8040KD, M8530+A8090KD, M8540+A8090KD, M8540+A8160KD, M8550+A8160KD,

M8550+A8200KD, M8540+A8400+G6804KD, M8550+A8400+G6804KD Intelligent variable frequency switch type direct-connected angle stroke actuator

M8510+A8005KL, M8510+A8010KL,M8510+A8020KL, M8520+A8020KL, M8520+A8040KL, M8530+A 8040KL, M8530+A8090KL, M8540+A8090KL, M8540+A8160KL, M8550+A8160KL, M8550+A8200KL,

M8540+A8400+G6804KL, M8550+A8400+G6804KL Intelligent variable frequency switch type lever type angle travel actuator

M8510C+A8005KD, M8510C+A8010KD, M8510C+A8020KD, M8520C+A8020KD, M8520C+A8040KD, M8530C+A8040KD, M8530C+A8090KD, M8540C+A8090KD, M8540C+A8160KD, M8550C+A8160KD, M8550C+A8200KD, M8540C+A8400+G6804KD, M8550C+A8400+G6804KD Intelligent variable frequency switch type direct-connected angle stroke actuator with 4-20mA output

M8510C+A8005KL, M8510C+A8010KL, M8510C+A8020KL, M8520C+A8020KL, M8520C+A8040KL, M8530C+A8040KL, M8530C+A8090KL, M8540C+A8090KL, M8540C+A8160KL, M8550C+A8160KL, M8550C+A8200KL, M8540C+A8400+G6804KL, M8550C+A8400+G6804KL Intelligent variable frequency switch lever type angle travel actuator with 4-20mA output

M8510+L8210, M8520+L8220, M8520+L8230,M8530+L8240 Intelligent frequency conversion switch type linear actuator

M8510C+L8210, M8520C+L8220, M8520C+L8230, M8530C+L8240 intelligent variable frequency switch type linear actuator with 4-20mA output

Sichuan Instrument M8500 Intelligent Frequency Conversion Electric Actuator :
M8510, M8520, M8530, M8540, M8550

M8500 series intelligent variable frequency electric actuator: This product is an intelligent variable frequency electric actuator developed by Chongqing Chuanyi Company in cooperation with internationally renowned companies. This product is based on the dsPIC digital signal controller (DSC), a new generation of 16-bit high-performance single-chip microcomputer with embedded DSP engine from Microchip Technology Inc. of the United States. It adopts contemporary advanced variable frequency control technology to achieve ideal flexible starting and flexible positioning control, and reduce mechanical shock. It also has a series of self-diagnosis and self-protection functions such as over-torque and overheating, and has excellent protection effects on terminal adjustment mechanisms such as valves. With variable frequency control, the speed and output force (torque) during positioning can be flexibly adjusted, achieving high-precision positioning without overshoot. The starting current is close to the rated current of the motor, which is one-fourth to one-eighth of the starting current of conventional switch control, reducing the impact on the machine drive device and motor, and has high reliability. It is used in occasions with high control requirements in industries such as power, metallurgy, petroleum, chemical industry, building materials, urban water supply, and sewage treatment.

Features of M8500 series intelligent variable frequency electric actuators:

 ▲ Digitalization: The displacement, speed and steering sensors of the electric actuator adopt non-contact sensors with high resolution, no wear, Long life, digital signal directly transmitted to the processor, high sensor accuracy, strong anti-interference ability, not affected by ambient temperature

 ▲ Intelligent: full range of microprocessor control of displacement, speed, torque (thrust), etc., perfect intelligent dynamic monitoring, automatic fault, Diagnosis and self-processing ensure the equipment operates safely.

 ▲ Frequency conversion control: speed and torque can be adjusted in both directions, and variable speed positioning can be executed with high precision and without overshoot, making the use of the valve, Lifespan is greatly improved.

 ▲ Fieldbus: Optional HART , Profibus and other fieldbus communication functions can realize remote and local configuration and control.

▲ Power supply: 380V.AC and 220V.AC , namely three-phase electric actuator (three-phase electric head) and single-phase electric actuator (single-phase electric head)

▲ According to user requirements, this product can have infrared communication function or wireless communication function compliant with ZigBee protocol, which can realize rapid setting, wireless operation, fault diagnosis and information collection of the product.

Main technical indicators:

        ▲ Basic error: ±1%

        ▲ Hysteresis: 1%

         ▲ Damping characteristics: no oscillation

         ▲ Ambient temperature: -25℃ — +80℃

         ▲ Relative humidity: < 95% average value (heater required for condensation)

         ▲ Power supply: three-phase 380V.AC 50/50Hz

              Optional: AC 415V 3PH ; -15%/+10% ; 50Hz/6OHz ± 5%

              AC 220V 1PH ; -10%/+10% ; 50Hz ± 5% (supply according to user requirements)

         ▲ Analog input: 4 — 20mA.DC

         ▲ Analog output: 0/4 — 20mA.DC

         ▲ Digital input: 4 channels, E1 — E4 State “0” : -3 — +5V State “1” : +12 — +35V

         ▲ Digital output: 4-7 switch quantities A1-A4 ( A1-A7 Vmax=50V , Imax≤150mA ,                      Imin≥1mA , 2 ( 3 ) normally open, 2 ( 4 ) normally closed)

          ▲ Dead zone: 0.5 (0.2-10% adjustable )

          ▲ Protection level: IP67 ( IP68 optional)

Multi-turn actuator, Linear actuator. Angular actuator

Model specification representation of M8500 series intelligent variable frequency electric actuator:

1.  Model and specification representation of multi-turn electric actuators:                                                                                                                                                               Selection of multi-turn electric actuator:

          Switch type ——S2 working mode;

model	Cut-off torque range Nm	Speed ​​rpm	Installing ISO5210 flange	Stroke without sleeve mm	Current A	Power KW	Weight Kg
M8510	20 ～50	7 to 35	F10	190	1.8	0.48	twenty one
M8520	40 ～100		F10	190	2.9	0.85	twenty three
M8530	80 ～200		F14	190	4.75	1.71	33
M8540	160 ～400		F16	230	7.3	2.9	48
M8550	240 ～600		F16	230	11.4	4.2	65
M8550+G7010	600 ～1200	2.613	5 ( JB2920 )	— —			110
M8550+G7020	1080 ～2500	1.5 ～7.5	7 ( JB2920 )				135
M8550+G7030	1440 ～3600	1 to 6	8 ( JB2920 )				160

2.  Partial rotary ( 0 ~ 90 ℃ ) electric actuator:

           Selection of partial rotary ( 0 ~ 90 ℃ ) electric actuator:

           Switch type —S2 working mode:

model	Output cut-off torque range Nm	Cut-off torque adjustment range ( % )	Full travel time range s/90°	Arm length mm
M8510+A8010	360-900	40%-90%	30 ～150	200
M8510+A8020	420-1050	40%-100%	32 ～160	200
M8520+A8020	720-1800	40%-80%	32 ～160	200
M8520+A8040	810-2025	40%-100%	32 ～160	250
M8530+A8040	1440-3600	40%-80%	32 ～160	250
M8530+A8090	1800-4500	40%-100%	32 ～160	250
M8540+A8090	3200-8000	40%-90%	32 ～160	250
M8540+A8200	4800-12000	40%-100%	43 ~ 214	500
M8550+A8200	7200-18000	40%-100%	43 ~ 214	500
M8540+A8400+G6804	16000-24000	40%-100%	85 ～418	500
M8550+A8400+G6804	14400-36000	40%-100%	85 ～418	500

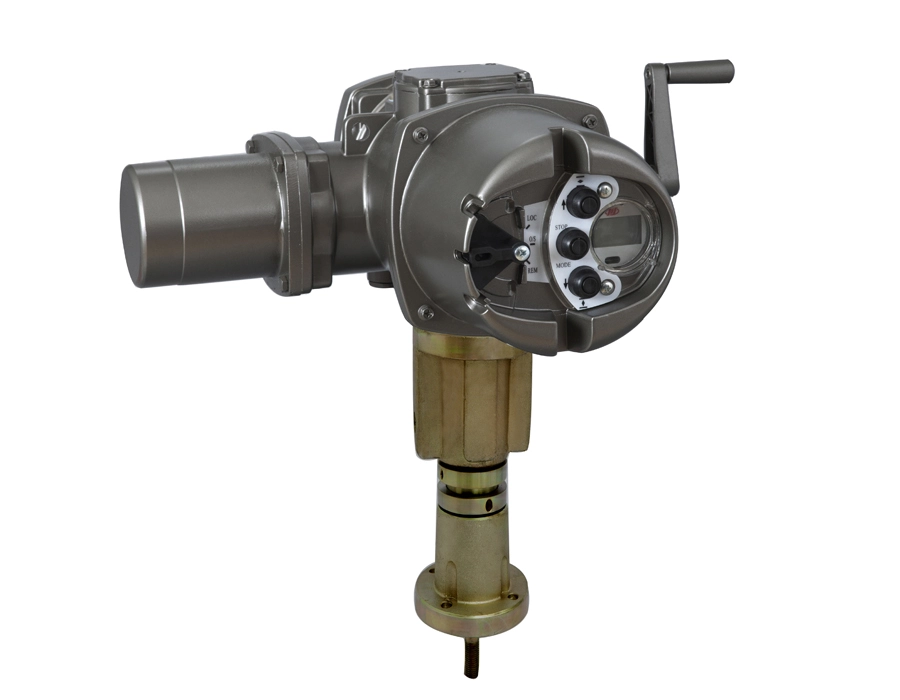

3.  Linear electric actuator:

           Selection of linear electric actuators:

           Switch type:

model	* Maximum cutting force KN	Cut-off thrust range KN	Speed ​​setting range mm/s	* Maximum stroke mm	Connection flange ISO5210
M8510+L8210	8	3.2 ~ 8	0.6 ～2.9	50 , 100	F10
M8520+L8220	16	6.4 ～16	0.6 ～2.9	50 , 100	F10
M8520+L8230	25	10 to 25	0.7 ～3.5	63 , 125	F10
M8530+L8240	40	16 to 40	0.8 ～4.1	60 , 100 , 160	F14
