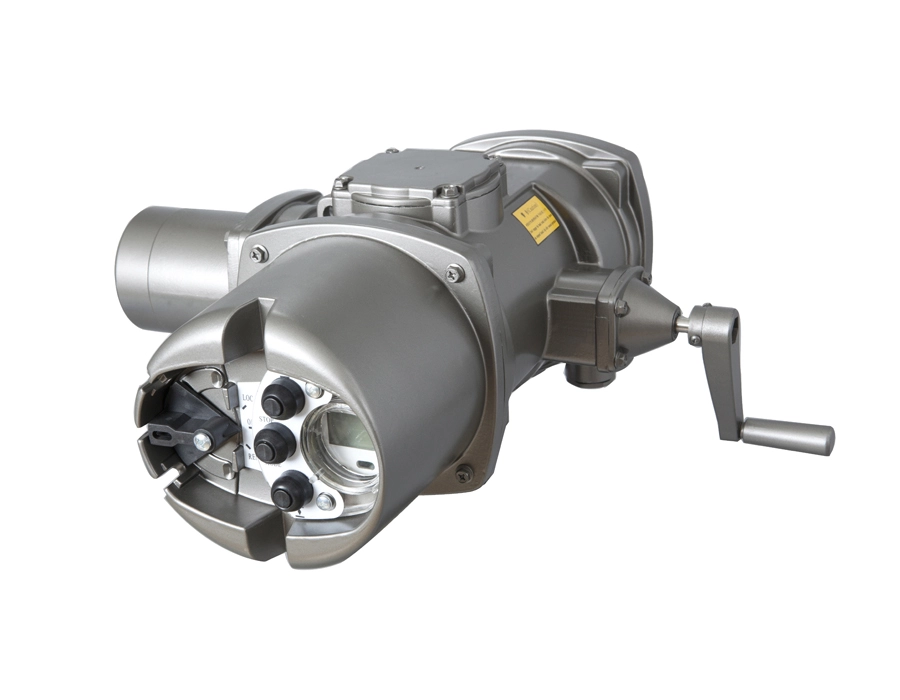

Chongqing ChuanYi | M8000 Intelligent Variable Frequency Electric Actuator

Series : M8000

Name : Intelligent Variable Frequency Electric Actuator

M8510, M8520, M8530, M8540, M8550 intelligent variable frequency switch actuator

M8610, M8620, M8630, M8640, M8650 intelligent variable frequency actuator

M8510S, M8520S, M8530S, M8540S, M8550S Intelligent frequency conversion switch actuator 220V.AC

M8610S, M8620S, M8630S, M8640S, M8650S intelligent variable frequency actuator 220V.AC

M8510+A8010KD,M8510+A8020KD,M8520+A8020KD,M8520+A8040KD,M8530+A8040KD,

M8530+A8090KD,M8540+A8090KD,M8540+A8610KD,M8550+A8610KD,M8550+A8200KD,

M8540+A8400+G6804KD, M8540+A8400+G6804KD Intelligent variable frequency switch type direct-connected angle stroke actuator

M8510+A8010KL,M8510+A8020KL,M8520+A8020KL,M8520+A8040KL,M8530+A8040KL,

M8530+A8090KL,M8540+A8090KL,M8540+A8610KL,M8550+A8610KL,M8550+A8200KL,

M8540+A8400+G6804KL, M8540+A8400+G6804KL Intelligent variable frequency switch type lever type angle travel actuator

M8510C+A8005KD,M8510C+A8010KD,M8510C+A8020KD,M8520C+A8020KD,M8520C+A8040KD,M8530C+A8040KD,M8530C+A8090KD,M8540C+A8090KD,M8540C+A8160KD,M8550C+A8160KD,M8550C+A8200KD,M8540C+A8400+G6804KD, M8550C+A8400+G6804KD Intelligent variable frequency switch type direct-connected angle stroke actuator with 4-20mA output

M8510C+A8005KL,M8510C+A8010KL,M8510C+A8020KL,M8520C+A8020KL,M8520C+A8040KL,M8530C+A8040KL,M8530C+A8090KL,M8540C+A8090KL,M8540C+A8160KL,M8550C+A8160KL,M8550C+A8200KL,M8540C+A8400+G6804KL, M8550C+A8400+G6804KL Intelligent variable frequency switch lever type angle travel actuator with 4-20mA output

M8610+A8005KD,M8610+A8010KD,M8610+A8020KD,M8620+A8020KD,M8620+A8040KD,

M8630+A8040KD,M8630+A8090KD,M8640+A8090KD,M8640+A8160KD,M8650+A8160KD,

M8650+A8200KD,M8640+A8400+G6804KD, M8650+A8400+G6804KD Intelligent frequency conversion regulation type direct-connected angular stroke actuator

M8610+A8005KL,M8610+A8010KL,M8610+A8020KL,M8620+A8020KL,M8620+A8040KL,M8630+A 8040KL,M8630+A8090KL,M8640+A8090KL,M8640+A8160KL,M8650+A8160KL,M8650+A8200KL,

M8640+A8400+G6804KL, M8650+A8400+G6804KL Intelligent variable frequency adjustable lever type angular stroke actuator

M8510+L8210,M8520+L8220,M8520+L8230,M8530+L8240 Intelligent frequency conversion switch type linear actuator

M8510C+L8210,M8520C+L8220,M8520C+L8230,M8530C+L8240 intelligent variable frequency switch type linear actuator with 4-20mA output

M8610+L8210,M8620+L8220,M8620+L8230,M8630+L8240 Intelligent frequency conversion adjustment linear actuator

M8410,M8420,M8430,M8440,M8450 , M8310,M8320,M8330,M8340,M8350

Sichuan Instrument M8000 intelligent variable frequency electric actuator M8610, M8620, M8630, M8640, M8650, M8510, M8520, M8530, M8540, M8550 Sichuan Instrument M8000 intelligent variable frequency electric actuator: This product is an intelligent variable frequency electric actuator developed by Chongqing Sichuan Instrument Company in cooperation with internationally renowned companies. It is widely used in metallurgy, chemical industry, petroleum, power stations, heating and water supply systems and sewage treatment systems

Detailed introduction :Sichuan Instrument M8000 intelligent variable frequency electric actuator
M8610, M8620, M8630, M8640, M8650 , M8510, M8520, M8530, M8540, M8550

M8000 series intelligent variable frequency electric actuator: This product is a smart variable frequency electric actuator developed by Chongqing Chuanyi Company in cooperation with internationally renowned companies. It is widely used in metallurgy, chemical industry, petroleum, power stations, heating and water supply systems and sewage treatment systems.

Features of Sichuan Instrument M8000 intelligent variable frequency electric actuator:

▲ Digitalization: The displacement, speed and steering sensors of the electric actuator adopt non-contact sensors with high resolution, no wear, Long life, digital signal directly transmitted to the processor, high sensor accuracy, strong anti-interference ability, not affected by ambient temperature

▲ Intelligent: All-round microprocessor control of displacement, speed, torque (thrust), etc., perfect intelligent dynamic monitoring, automatic fault, Diagnosis and self-processing ensure the equipment operates safely.

▲ Frequency conversion control: speed and torque can be adjusted in both directions, variable speed positioning can be executed with high precision and without overshoot, making the use of the valve, Lifespan is greatly improved.

▲ Fieldbus: Optional HART , Profibus and other fieldbus communication functions can realize remote and local configuration and control.

▲ Power supply: 380V.AC and 220V.AC , namely three-phase electric actuator (three-phase electric head) and single-phase electric actuator (single-phase electric head)

Main technical indicators of Sichuan Instrument M8000 intelligent variable frequency electric actuator :▲ Basic error: ±1%

▲ Hysteresis: 1%

▲ Damping characteristics: no oscillation

▲ Ambient temperature: -25℃ — +80℃

▲ Relative humidity: < 95% average value (heater required for condensation)

▲ Power supply: three-phase 380V.AC 50/50Hz

▲ Analog input: 4 — 20mA.DC

▲ Analog output: 0/4 — 20mA.DC

▲ Digital input: 4 channels, E1 — E4 State “0” : -3 — +5V State “1” : +12 — +35V

▲ Digital output: 4-7 switch quantities A1-A4 ( A1-A7 Vmax=50V , Imax≤150mA                        , Imin≥1mA , 2 ( 3 ) of which Normally open, 2 ( 4 ) normally closed)

▲ Dead zone: 0.5 — 10%

▲ Protection level: IP67 ( IP68 optional)

Multi-turn actuator, Linear actuator, Angular actuator :Model specification representation of M8000 series intelligent variable frequency electric actuator:

1.  Model and specification representation of multi-turn electric actuators:

Selection of multi-turn electric actuator:

Adjustable type – S4 working mode:

model	Recommended adjustment torque Nm	Cut-off torque range Nm	Speed ​​rpm	Installing ISO5210 flange	Stroke without sleeve mm	Current A	Power KW	Weight Kg
M8610	30	20 ～50	7 to 35	F10	190	1.8	0.48	twenty one
M8620	60	40 ～100		F10	190	2.9	0.85	twenty three
M8630	120	80 ～200		F14	190	4.75	1.71	32
M8640	240	160 ～400		F16	230	7.3	2.5	50
M8650	360	240 ～600		F16	230	11.4	4.0	65

Switch type ——S2 working mode;

model	Cut-off torque range Nm	Speed ​​rpm	Installing ISO5210 flange	Stroke without sleeve mm	Current A	Power KW	Weight Kg
M8510	20 ～50	7 to 35	F10	190	1.8	0.48	twenty one
M8520	40 ～100		F10	190	2.9	0.85	twenty three
M8530	80 ～200		F14	190	4.75	1.71	33
M8540	160 ～400		F16	230	7.3	2.9	48
M8550	240 ～600		F16	230	11.4	4.2	65
M8550+G7010	600 ～1200	2.613	5 ( JB2920 )	— —			110
M8550+G7020	1080 ～2500	1.5 ～7.5	7 ( JB2920 )				135
M8550+G7030	1440 ～3600	1 to 6	8 ( JB2920 )				160

2.  Partial rotary ( 0 ~ 90 ℃ ) electric actuator:

Selection of partial rotary ( 0 ~ 90 ℃ ) electric actuator:

Adjustable type:

model	Recommended adjustment torque Nm	Output cut-off torque range Nm	Cut-off torque adjustment range ( % )	Full travel time range s/90°	Arm length mm
M8610+A8010	500	360-900	40%-90%	30 ～150	200
M8610+A8020	800	420-1050	40%-100%	32 ～160	200
M8620+A8020	1200	720-1800	40%-80%	32 ～160	200
M8620+A8040	1600	810-2025	40%-100%	32 ～160	250
M8630+A8040	2500	1440-3600	40%-80%	32 ～160	250
M8630+A8090	4000	1800-4500	40%-100%	32 ～160	250
M8640+A8090	6000	3200-8000	40%-90%	32 ～160	250
M8640+A8200	8000	4800-12000	40%-100%	43 ~ 214	500
M8650+A8200	12000	7200-18000	40%-100%	43 ~ 214	500
M8640+A8400+G6804	16000	16000-24000	40%-100%	85 ～418	500
M8650+A8400+G6804	24000	14400-36000	40%-100%	85 ～418	500

Switch type —S2 working mode:

model	Output cut-off torque range Nm	Cut-off torque adjustment range ( % )	Full travel time range s/90°	Arm length mm
M8510+A8010	360-900	40%-90%	30 ～150	200
M8510+A8020	420-1050	40%-100%	32 ～160	200
M8520+A8020	720-1800	40%-80%	32 ～160	200
M8520+A8040	810-2025	40%-100%	32 ～160	250
M8530+A8040	1440-3600	40%-80%	32 ～160	250
M8530+A8090	1800-4500	40%-100%	32 ～160	250
M8540+A8090	3200-8000	40%-90%	32 ～160	250
M8540+A8200	4800-12000	40%-100%	43 ~ 214	500
M8550+A8200	7200-18000	40%-100%	43 ~ 214	500
M8540+A8400+G6804	16000-24000	40%-100%	85 ～418	500
M8550+A8400+G6804	14400-36000	40%-100%	85 ～418	500

3. Linear electric actuator:

Selection of linear electric actuators:

Adjustable type:

model	* Maximum cutting force KN	Adjustment torque range KN	Speed ​​setting range mm/s	* Maximum stroke mm	Connection flange ISO5210
M8610+L8210	8	3.2 ~ 8	0.6 ～2.9	50 , 100	F10
M8520+L8220	16	6.4 ～16	0.6 ～2.9	50 , 100	F10
M8620+L8230	25	10 to 25	0.7 ～3.5	63 , 125	F10
M8630+L8240	40	16 to 40	0.8 ～4.1	60 , 100 , 160	F14

Switch type:

model	* Maximum cutting force KN	Cut-off thrust range KN	Speed ​​setting range mm/s	* Maximum stroke mm	Connection flange ISO5210
M8510+L8210	8	3.2 ~ 8	0.6 ～2.9	50 , 100	F10
M8520+L8220	16	6.4 ～16	0.6 ～2.9	50 , 100	F10
M8520+L8230	25	10 to 25	0.7 ～3.5	63 , 125	F10
M8530+L8240	40	16 to 40	0.8 ～4.1	60 , 100 , 160	F14
