Terminal Block

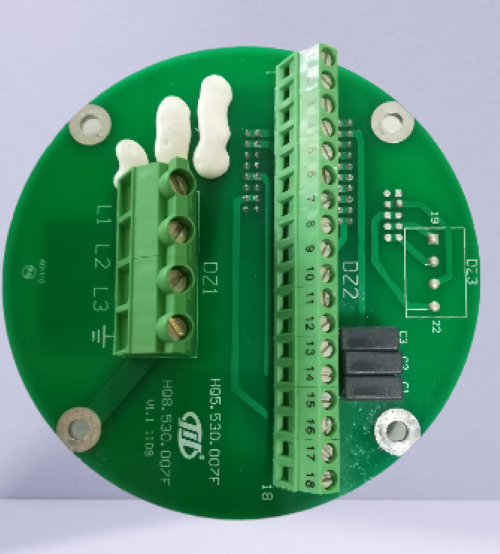

Chongqing Chuanyi Actuator M03/04 Terminal Block HQ5.530.007F, a spare part used in Chuanyi M03/04 intelligent electric actuators.
- Type: Terminal Block / Wiring Board
- Model: HQ5.530.007F
- Part Number: HQ5.530.007F
- System Compatibility: Chuanyi M03/04 series actuators
-
Brand : CHONGQING CHUANYIMFR : SICHUAN INSTRUMENT / KAWAII
Product Overview:
The HQ5.530.007F terminal block is a wiring interface board for Chuanyi M03/04 actuators. It provides the electrical connection points for power, control signals, feedback sensors, and communication lines. This module ensures reliable wiring and easy maintenance of actuator systems.
Specifications (typical for HQ5.530 series terminal boards):
| Feature | Specification |
|---|---|
| Function | Terminal block for actuator wiring |
| Connections | Power input, motor output, feedback sensors, control signals |
| Voltage Rating | 24 VDC logic, 220 VAC motor supply (depending on actuator) |
| Current Rating | Up to 10 A (per channel) |
| Mounting | PCB / actuator internal frame |
| Operating Temp | −20 °C to +70 °C |
| Protection | Conformal coating against dust and humidity |
| Compliance | IEC/GB industrial standards |
Dimensions & Weight:
- Dimensions: ~150 × 80 × 20 mm
- Weight: ~0.2–0.3 kg
Applications:
- M03/04 series actuators – wiring interface
- Steam turbine valve control
- Petrochemical process automation
- Water treatment valve actuation
- Oil & gas pipeline control
