Chongqing Chuanyi | CS5.530.092 Position Feedback Board ZHB Series

Deskripsi

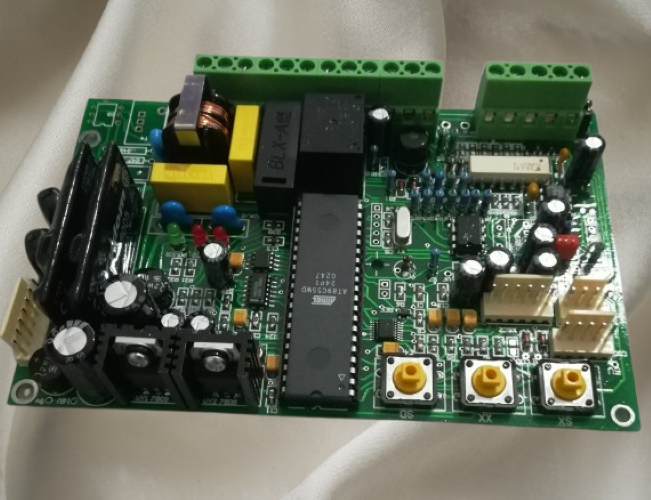

Position Feedback Board

• Type: Position feedback board / actuator control PCB
• Model: CS5.530.092
• Series: ZHB Intelligent Electric Actuator
• Design: Green PCB with connectors, ICs, capacitors, and resistors
• Function: Provides valve position feedback and signal processing for ZHB actuators
• Voltage: 24 VDC logic supply
• Signal Output: 4–20 mA analog or digital (Modbus/HART depending on actuator configuration)
• Accuracy: ±0.5% of full stroke
• Compatibility: ZHB angle‑stroke actuators (torque ranges 60–250 Nm)
• Protection: Conformal coating for industrial environments
• Dimensions: ~120 mm × 90 mm × 20 mm (PCB board)
• Estimated Weight: ~0.3–0.5 kg
• Brand : CHONGQING CHUANYI
  MFR : SICHUAN INSTRUMENT / KAWAII

The Chongqing Chuanyi CS5.530.092 Position Feedback Board is a specialized PCB module for the ZHB series intelligent electric actuators. It provides accurate valve position feedback, integrates with DCS/PLC systems, and is available directly from Chuanyi Automation (China).

Application:
• Power plants – valve and damper positioning in steam turbines and boilers
• Chemical plants – precise control of process valves
• Steel mills and heavy industry – actuator feedback for automation systems
• Integration with DCS/PLC systems – reliable position feedback for closed‑loop control
