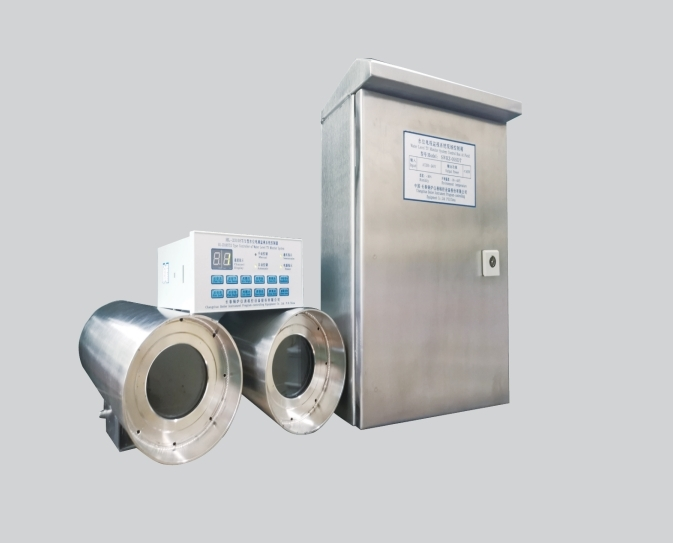

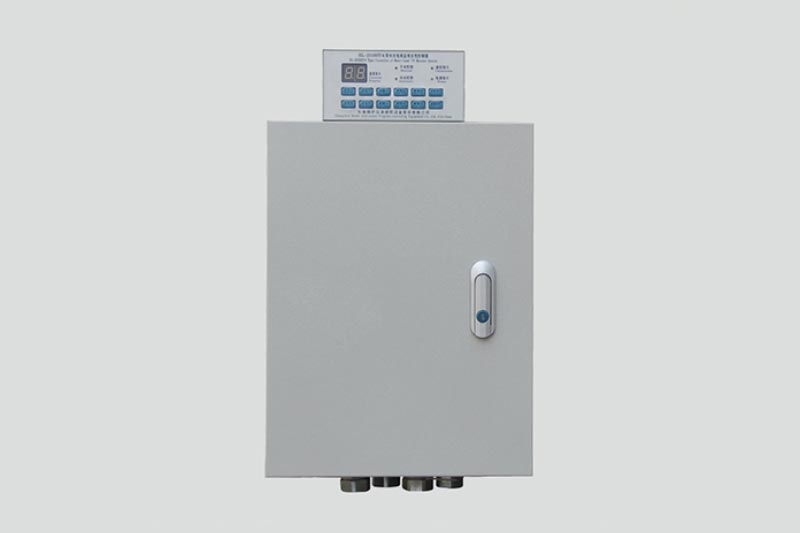

Water Level TV Monitoring System
Model : HLTV-200A
Brand : CHANGCHUN BOILER INSTRUMENT
Product Overview
The HLTV-200A, B, and C fully digital water level television monitoring systems are primarily used for monitoring the water level of boiler drums in thermal power generators. They can also be used for short-range and long-range monitoring of fixed or moving targets in production, scientific research, construction, and dispatching operations, even under harsh conditions such as high temperatures below 80°C, high radiation levels, and high dust levels. The system provides direct monitoring of on-site targets with high reliability and security. It provides real-time, vivid, and accurate images of monitored objects, making it an extremely effective observation tool in modern management.
Working principle:
The system transmits the monitoring signal of the monitored target to the monitor through an analog camera or a digital network camera, and then the monitor restores it into an image for target monitoring.
The operator can adjust the camera lens and electric pan/tilt (optional, standard is semi-fixed pan/tilt) in the control room through the controller or DCS operation station (DCS outputs several normally open passive dry contacts to the controller) to clearly monitor all angles of the target scene.
The HLTV-200A/2 is a high-reliability digital water level TV monitoring system designed for real-time visual surveillance of boiler drum water levels. It’s engineered for harsh environments—high temperature, radiation, and dust—and is widely used in thermal power generation, chemical plants, and metallurgical operations.
Specifications
| Parameter | Value / Description |
|---|---|
| Model | HLTV-200A/2 |
| Monitoring Type | Real-time TV surveillance of boiler drum water level |
| Camera Type | Analog or digital network camera |
| Display Output | Real-time image on control room monitor |
| Control Interface | DCS-compatible (dry contact outputs) |
| Pan-Tilt Unit | Optional electric or semi-fixed PTZ |
| Operating Temp Range | Up to 80°C ambient |
| Cooling Method | Compressed air cooling for camera housing |
| Resolution | 1920 × 1080 (Full HD) |
| Shutter Speed | 1/3 s to 1/100,000 s (Auto/Manual) |
| Scanning System | Progressive |
| Sensor Type | 1/2.8″ CMOS |
| ROM / RAM | 128 MB / 128 MB |
Material Composition
- Camera Housing: Stainless steel or aluminum alloy (air-cooled)
- Sensor Protection Tube: Pt100 platinum thermal resistance with certified guard tube materials
- Mounting Frame: Industrial-grade steel
- Wiring & Connectors: Shielded industrial-grade cabling
All materials comply with Chinese national standards for industrial instrumentation.
Dimensions (Typical)
While exact mechanical drawings are not publicly listed, typical installation dimensions include:
- Camera Housing: ~300 mm (L) × 150 mm (W) × 150 mm (H)
- Mounting Bracket: ~200 mm × 200 mm base
- PTZ Unit (if included): ~250 mm height
Application Scope
- Boiler Drum Water Level Monitoring
- Thermal Power Plants
- Chemical & Petrochemical Facilities
- Metallurgical Furnaces
- Remote Monitoring in Hazardous Zones
