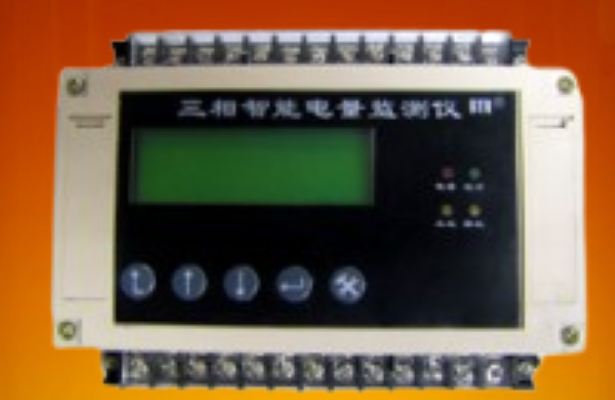

Three-Phase Intelligent Electricity Monitor
Model : AJ34
Brand : Shenzhen Electronic.Co.Ltd
Note: Measure three-phase four-wire phase voltage, current, frequency, power factor, active power, reactive power, active energy and reactive energy.
Product Introduction
The AJ34 high-precision intelligent comprehensive electrical quantity meter is primarily used in various industrial control and measurement systems. It conveniently measures various electrical parameters on three-phase, four-wire power lines. A single intelligent comprehensive electrical quantity meter can simultaneously replace multiple electrical parameter sensors, including current, voltage, frequency, power, power factor, and energy, reducing system costs and facilitating field wiring. In particular, its fully isolated processing technology significantly improves transmitter performance and contributes to increased system reliability. Its RS-485 bus output technology and MODBUS protocol enable the AJ series to connect to the same RS-485 bus as any industrial computer, facilitating programming and system expansion, allowing you to easily build your own measurement and control systems.
Features
Measure three-phase four-wire phase voltage, current, frequency, power factor, active power, reactive power, active energy, reactive energy and other electrical parameters.
One channel of power parameter output is 0-5V analog quantity.
RS485 interface communication.
Adopt MODBUS communication protocol.
Main technical parameters
Power supply
Input voltage: 12V/DC or 220V/AC (select one)
Input current: <100mA
Power input
Input voltage:
Range: 0-400VAC, phase voltage
Maximum withstand voltage: 500VAC continuous
Maximum measurement error: ±0.5%
Resolution: 0.1VAC
Input current:
Measuring range: 0-20A/AC (can be measured by setting the CT primary current ratio, external current transformer 0-300A current, current ratio can be set to 5~300:5)
Maximum current: 26A/AC continuous
Maximum measurement error: ±0.5%
Resolution: 0.01A
Analog output
Output voltage: 0-5VDC (corresponding to A-phase AC voltage 0-400VAC)
Communication method
Master-slave type, the measuring host is the master station and the sensor is the slave station.
Communication interface: RS-485.
Appearance and installation dimensions (see attached figure)
Dimensions: (L×W×H) = 155mm×110mm×60mm
Material: flame retardant ABS plastic structure.
Installation method: guide rail installation and double fixing with 4 screws.
Mounting hole position: 145mm×100mm
