Deskripsi

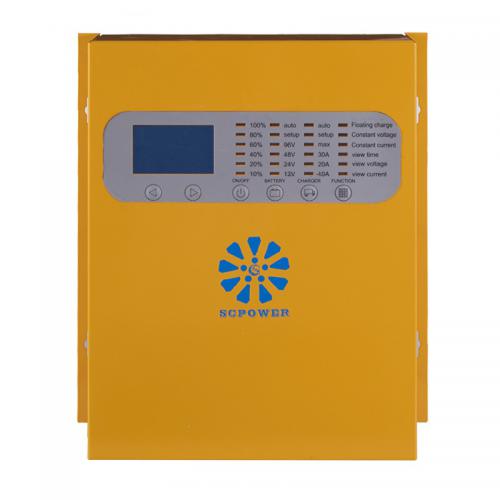

MPPT (Maximum Power Point Tracking) Controller
Model : SC-MC 20A
Brand : SCPOWER
OEM : Shangchi Power Technology Co., Ltd.
SC-MC series is the most stable solar charge controller with maximum power point tracking (MPPT) technology. It has the advantages of high conversion efficiency, high stability, wide PV voltage range input, can charge a variety of batteries, professional host computer monitoring software, etc.
Features
- Conversion efficiency up to 99%
- Intelligent design, online upgrade, customers enjoy lifelong upgrade service
- Adopt branded components with high temperature resistance not less than 105℃ and design life of more than 10 years
- PV wide voltage range input, 12V/24V/48V system maximum DC170V
- Customers can choose to charge 4 types of common batteries, and can customize charging for other batteries
- RS232 communication, supporting host computer software; Scalable LAN remote control
- LED display, host computer software displays various parameters
- Products are CE, ISO9001 certified
- Warranty period: 1 year
Product parameters:
|
SC-MC Standard Identification Solar Controller
|
|||||
|
SC-MC Series
|
10A | 20A | 25A | 30A | |
|
Charging Mode
|
MPPT automatic maximum power point tracking
|
||||
| Charging method |
Three stages: constant current (MPPT), constant voltage, floating charge
|
||||
|
Overall efficiency
|
12/24/48V
|
≥96.5%,≤99%
|
|||
|
Input Parameters
|
|||||
|
MPPT operating voltage range
|
12V System
|
DC18V~DC72V
|
|||
|
24V System
|
DC34V~DC72V
|
||||
|
48V Systems
|
DC65V~DC144V
|
||||
|
PV input maximum open circuit voltage
|
12/24/48V Systems
|
DC82V/DC82V/DC170V
|
|||
|
Maximum solar panel input power
|
12V System(W)
|
140W
|
290W
|
350W
|
460W
|
|
24V System(W)
|
280W
|
570W
|
700W
|
900W
|
|
|
48V System(W)
|
560W
|
1130W
|
1400W
|
1700W
|
|
|
Charging parameters
|
|||||
|
Available battery types
|
12/24/48V Systems
|
Sealed lead-acid battery, discharged battery, gel battery, nickel-cadmium battery (can also be customized to charge other types of batteries) |
|||
|
Rated charging current
|
12/24/48V Systems
|
10A
|
20A
|
25A
|
30A
|
|
Packaging parameters
|
|||||
|
Product size: length*width*height(mm)
|
276*241*100
|
||||
|
Net weight (kgs)
|
3
|
3
|
3
|
3
|
|
|
Gross weight(kgs)
|
3.5
|
3.5
|
3.5
|
3.5
|
|
|
Note: The above are basic parameters. Please refer to the specification or manual for details.
|
|||||
